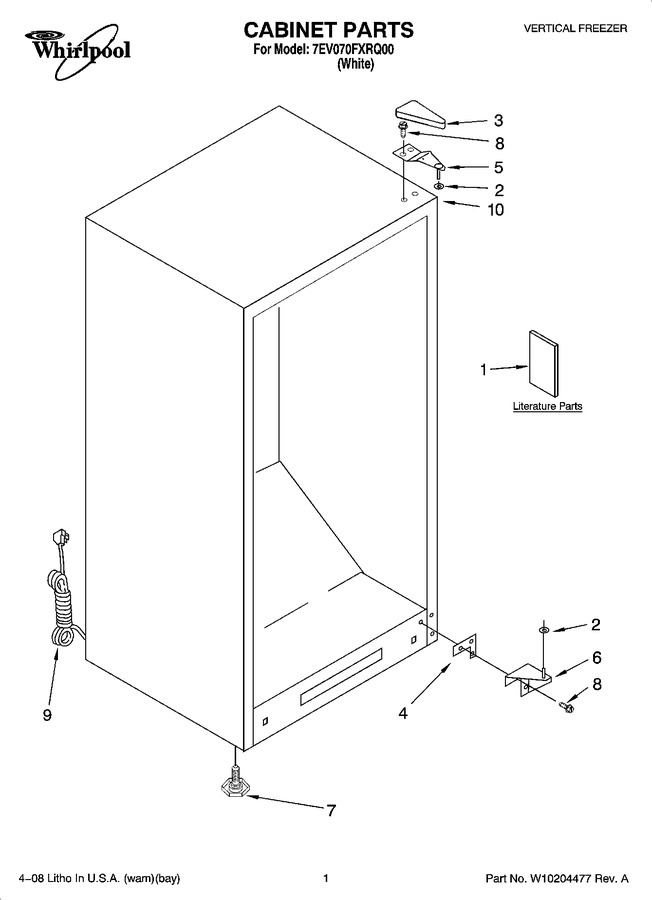

01 - Cabinet Parts


02 - Liner Parts


03 - Unit Parts


04 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4390916		Owners Manual		Appelez-nous	-
1	8210415		Energy Label/tag		Appelez-nous	-
2	W10851331		Washer, Door Spacer   (Replaces: 4390520)				$ 9.51
3	4357279		Hinge Cover				$ 46.56
4	4390489		Shim, Bottom				$ 6.26
5	4390885		Hinge, Top		Appelez-nous	-
6	8210419		Hinge, Bottom		Appelez-nous	-
7	W11117769		Leg, Leveler (2)   (Replaces: 4390866)			Immediately	$ 16.61
8	WP8204624		Screw   (Replaces: 4356830)				$ 14.99
9	8210424		Cord, Power		Appelez-nous	-
