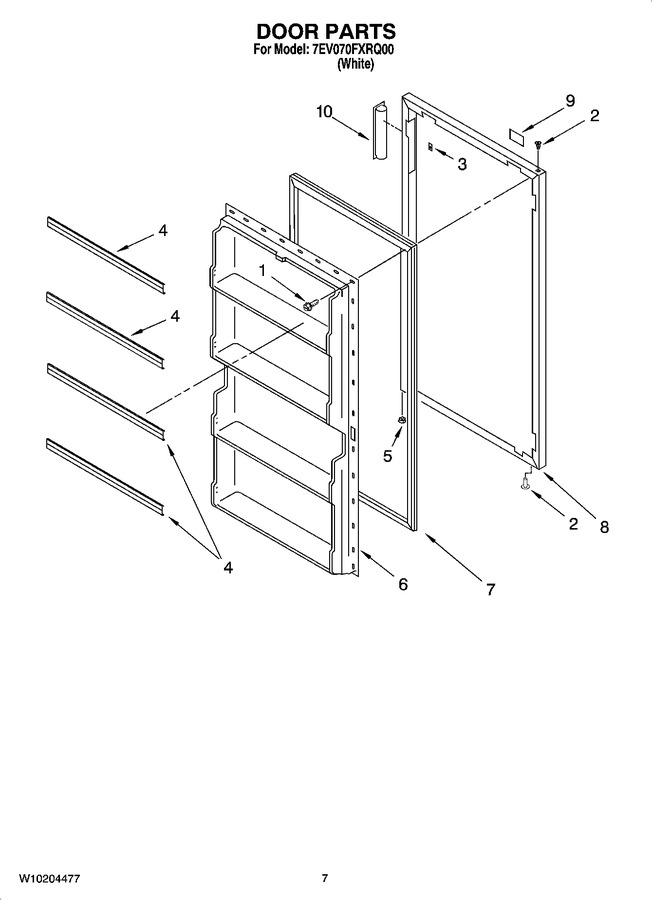

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4390598 | Screw Kit (50 Pcs) (Replaces: 4357290) |
|
$ 18.89 | |||||
| 2 | 4390731 | Bushing, Hinge |
|
$ 19.69 | |||||
| 3 | 4356306 | Clip, Handle |
|
$ 7.36 | |||||
| 4 | 8210418 | Rail, Door Shelf (4) |
|
- | |||||
| 5 | 3-24898-007 | Plug, Vent (Replaces: 4357067) |
|
$ 9.72 | |||||
| 6 | 8210417 | Door, Interior (includes Item 1) |
|
$ 236.66 | |||||
| 7 | 8210338 | Gasket, Door (includes Item 1) |
|
$ 160.23 | |||||
| 8 | 8210364 | Door, Exterior |
|
- | |||||
| 9 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 79.87 | ||||
| 10 | 4390641 | Handle (includes Item 3) |
|
- | |||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 106.15 | ||||||
| WP505587 | Sealer, Master (1 Qt.) (Replaces: 505587) |
|
Immediately | $ 156.56 | |||||
| 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 208.40 | ||||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | ||||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 46.30 | ||||||
| 798883 | Enamel (almond) (1 Qt. Uncut) |
|
- | ||||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 73.92 | |||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 |
