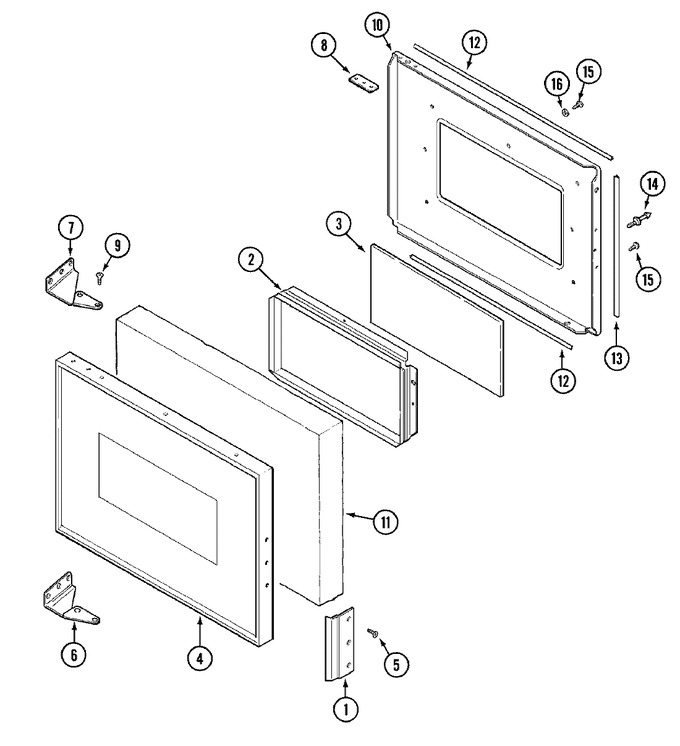

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7701P010-60 | Handle, Door | 10 |
|
- | ||||
| 2 | 3603W015-80 | Frame Assy. | 10 |
|
- | ||||
| 3 | 7902P037-60 | Glass, Door Inner | 10 |
|
- | ||||
| 4 | 5711S082-60 | Door Assembly (black) | 10 |
|
- | ||||
| 5 | 7101P045-60 | Screw | 10 |
|
- | ||||
| 6 | 7106P004-60 | Hinge | 10 |
|
- | ||||
| 7 | 7106P009-60 | Hinge | 10 |
|
- | ||||
| 8 | 8010P013-60 | Plate, Control | 10 |
|
- | ||||
| 9 | 7101P105-60 | Bolt | 10 |
|
- | ||||
| 10 | 74001761 | Lining, Oven Door | 10 |
|
- | ||||
| 11 | 7002P014-60 | Insulation, Door | 10 |
|
- | ||||
| 12 | 7212P005-60 | Seal | 10 |
|
- | ||||
| 13 | 7212P007-60 | Seal, Door (vertical) | 10 |
|
$ 47.10 | ||||
| 14 | 8024P001-60 | Strike, Male | 10 |
|
- | ||||
| 15 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 10 |
|
Immediately | $ 6.85 | |||
| 16 | 7109P015-60 | Washer | 10 |
|
- |
