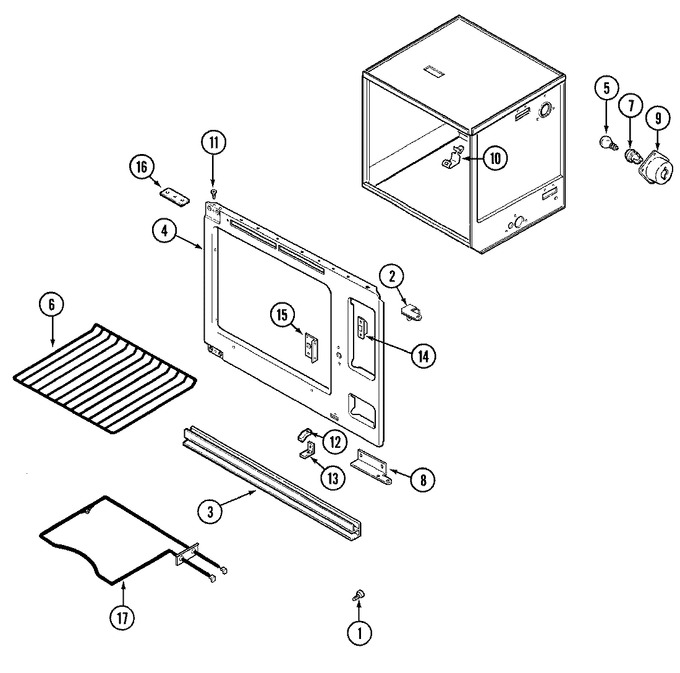

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Body (upper)
03 - Controls (upper)
04 - Door/drawer
05 - Door-upper
06 - Internal Controls
07 - Oven
08 - Oven (upper)
09 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8010P069-60 | Spacer, Hinge (main Top) | 10 |
|
$ 8.57 | ||||
| 1 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 10 |
|
Immediately | $ 12.62 | |||
| 2 | 3807F039-34 | Support | 10 |
|
- | ||||
| 3 | 7706P035-60 | Extrusion, Vent | 10 |
|
- | ||||
| 4 | 2201F064-19 | Frame, Oven Front | 10 |
|
- | ||||
| 5 | 8009 | Bulb-oven (Replaces: 7407P103-60) | 10 |
|
Immediately | $ 16.80 | |||
| 6 | 7801P008-60 | Rack | 10 |
|
- | ||||
| 7 | 7408P034-60 | Receptacle, Oven Light | 10 |
|
- | ||||
| 8 | 3807F133-34 | Support | 10 |
|
- | ||||
| 9 | 4001F016-19 | Housing, Lamp | 10 |
|
- | ||||
| 10 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 10 |
|
Immediately | $ 11.07 | |||
| 11 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 10 |
|
Immediately | $ 6.85 | |||
| 12 | 7101P019-60 | Screw, Dr Lck Hndl | 10 |
|
- | ||||
| 12 | 8016P001-60 | Glide, Door | 10 |
|
- | ||||
| 13 | 8004P002-60 | Support | 10 |
|
- | ||||
| 13 | WP7101P072-60 | Screw (Replaces: 7101P072-60) | 10 |
|
$ 6.77 | ||||
| 14 | 8002P006-60 | Catch Female | 10 |
|
- | ||||
| 15 | 3605F001-32 | Plate | 10 |
|
- | ||||
| 16 | 8010P014-60 | Plate, Control | 10 |
|
- | ||||
| 17 | 7101P105-60 | Bolt | 10 |
|
- | ||||
| 17 | 7406P089-60 | Element, Bake | 10 |
|
- |
