| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
359243 |
|
Screw, Lid Handle |
|
Appelez-nous
|
- |
|
|
|
| 2 |
379891 |
|
Handle, Lid (platinum) |
|
Appelez-nous
|
- |
|
|
|
| 2 |
379884 |
|
Handle, Lid (white) |
|
Appelez-nous
|
- |
|
|
|
| 2 |
379885 |
|
Handle, Lid (almond) |
|
Appelez-nous
|
- |
|
|
|
| 2 |
379888 |
|
Handle, Lid (golden Harvest) |
|
Appelez-nous
|
- |
|
|
|
| 2 |
379890 |
|
Handle, Lid (toast) |
|
Appelez-nous
|
- |
|
|
|
| 3 |
693276 |
|
Lid (white) |
|
Appelez-nous
|
- |
|
|
|
| 3 |
693277 |
|
Lid (almond) |
|
Appelez-nous
|
- |
|
|
|
| 3 |
693280 |
|
Lid (golden Harvest) |
|
Appelez-nous
|
- |
|
|
|
| 3 |
693281 |
|
Lid (toast) |
|
Appelez-nous
|
- |
|
|
|
| 3 |
693282 |
|
Lid (platinum) |
|
Appelez-nous
|
- |
|
|
|
| 4 |
80011 |
 |
Bumper, Lid (2) (Replaces: 384475) |
|
|
Immediately |
$ 8.98 |
|
|
| 5 |
384458 |
 |
Hinge, Lid (l.h.) |
|
|
|
$ 76.11 |
|
|
| 6 |
WP21097 |
 |
Pad, Lid Hinge (2) (Replaces: 21097) |
|
|
|
$ 7.02 |
|
|
| 7 |
WPW10119828 |
 |
Screw, Lid Hinge Mounting (4) (Replaces: 18724) |
|
|
Immediately |
$ 6.47 |
|
|
| 8 |
WP681414 |
 |
Screw, 10-16 X 1/2 (2) (Replaces: 343641) |
|
|
Immediately |
$ 7.07 |
|
|
| 9 |
WP692985 |
 |
Clip, Spring (2) (top To Cabinet) (Replaces: 692985) |
|
|
|
$ 6.99 |
|
|
| 10 |
54690 |
|
Plug, Button (2) |
|
Appelez-nous
|
- |
|
|
|
| 11 |
384460 |
|
Spring, Lid (l.h.) (includes Illus 10) |
|
Appelez-nous
|
- |
|
|
|
| 12 |
384698 |
|
Top (toast) |
|
Appelez-nous
|
- |
|
|
|
| 12 |
384699 |
|
Top (platinum) |
|
Appelez-nous
|
- |
|
|
|
| 12 |
WP384693 |
|
Top (white) (Replaces: 384693) |
|
|
|
$ 274.65 |
|
|
| 12 |
384694 |
|
Top (almond) |
|
Appelez-nous
|
- |
|
|
|
| 12 |
384697 |
|
Top (golden Harvest) |
|
Appelez-nous
|
- |
|
|
|
| 13 |
19119 |
|
Bumper, Lid Hinge (2) |
|
|
|
$ 5.75 |
|
|
| 14 |
WP21258 |
 |
Bearing, Lid Hinge (2) (Replaces: 21258) |
|
|
Immediately |
$ 6.87 |
|
|
| 15 |
354764 |
|
Screw & Washer, Lid Switch Shield (2) |
|
Appelez-nous
|
- |
|
|
|
| 16 |
WP358684 |
 |
Strike, Lid Switch (Replaces: 357913) |
|
|
Immediately |
$ 6.90 |
|
|
| 17 |
384459 |
|
Hinge, Lid (r.h.) |
|
|
|
$ 76.63 |
|
|
| 18 |
WP308544 |
 |
Screw, Ground (10-24 X 1/2) (Replaces: 274707) |
|
|
Immediately |
$ 6.98 |
|
|
| 19 |
357347 |
|
Actuator, Lid Switch |
|
Appelez-nous
|
- |
|
|
|
| 20 |
W10080180 |
|
Nut, Ground Screw (10-24) (Replaces: 271166) |
|
|
|
$ 12.13 |
|
|
| 21 |
384461 |
|
Spring, Lid (r.h.) (includes Illus. 10) |
|
Appelez-nous
|
- |
|
|
|
| 22 |
W10820036 |
 |
Switch, Lid (alt.) (Replaces: 364091) |
|
|
Immediately |
$ 27.45 |
|
|
| 22 |
W10820036 |
|
Switch, Lid (alt.) (Replaces: 367034) |
|
|
Immediately |
$ 27.45 |
|
|
| 22 |
00-6163 |
|
Switch, Lid (alt.) (Replaces: 364090) |
|
|
|
$ 22.92 |
|
|
| 22 |
W10820036 |
|
Switch, Lid (Replaces: 660308) |
|
|
Immediately |
$ 27.45 |
|
|
| 23 |
WP90016 |
 |
Clip, Harness Routing (2) (Replaces: 90016) |
|
|
|
$ 10.19 |
|
|
| 24 |
WP359231 |
 |
Shield, Lid Switch (Replaces: 354289) |
|
|
|
$ 7.58 |
|
|
| 25 |
691707 |
|
Receptacle, Latching (3-way) (connects With Automatic Cabinet Harness) |
|
Appelez-nous
|
- |
|
|
|
| 25 |
692732 |
|
Harness, Lid Switch |
|
Appelez-nous
|
- |
|
|
|

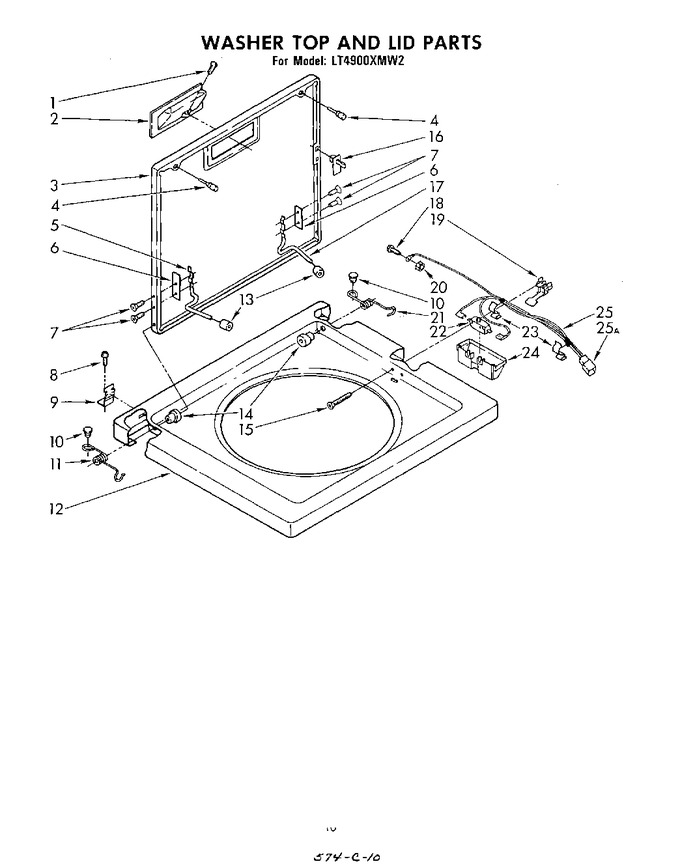

View Diagram in Separate Window
