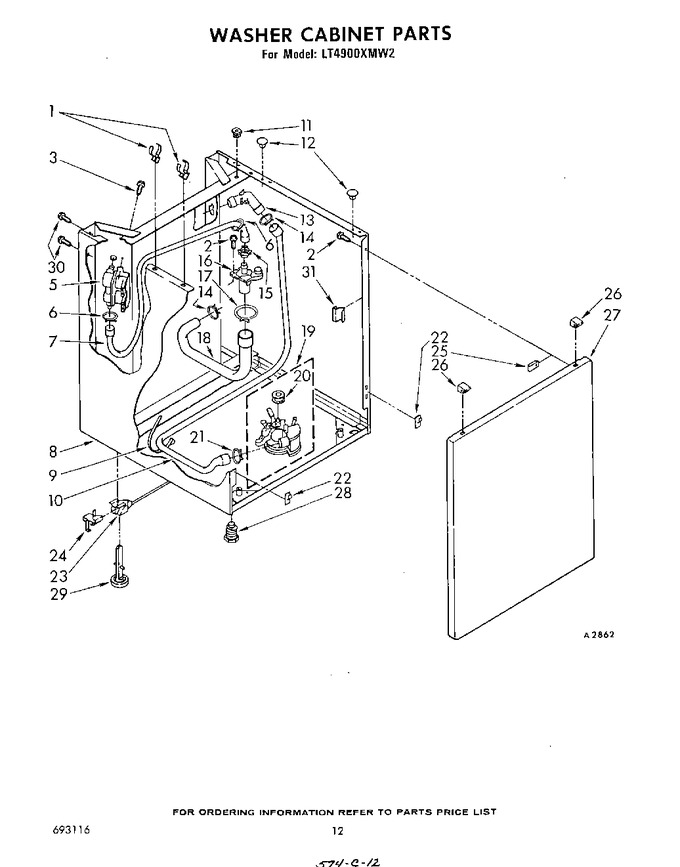

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
356746 |
|
Clip, Condenser (2) (water Inlet Hose) |
|
|
|
$ 19.03 |
|
|
| 2 |
WP681414 |
 |
Screw,10-16 X 1/2 (Replaces: 343641) |
|
|
Immediately |
$ 7.07 |
|
|
| 3 |
WP3390631 |
 |
Screw, Mixing Valve Mounting (2) (10-16 X 3/8) (Replaces: 62863) |
|
|
|
$ 7.04 |
|
|
| 5 |
285805 |
 |
Valve, Water Mixing (Replaces: 358992) |
|
|
Immediately |
$ 49.57 |
|
|
| 6 |
WP596669 |
 |
Clamp, Hose (Replaces: 272846) |
|
|
Immediately |
$ 7.56 |
|
|
| 7 |
WP692699 |
 |
Hose, Water Inlet (siphon Break To Mixing Valve) (Replaces: 692699) |
|
|
|
$ 31.45 |
|
|
| 8 |
692564 |
|
Cabinet (platinum) |
|
Appelez-nous
|
- |
|
|
|
| 8 |
692563 |
|
Cabinet (toast) |
|
Appelez-nous
|
- |
|
|
|
| 8 |
692565 |
|
Cabinet (golden Harvest) |
|
Appelez-nous
|
- |
|
|
|
| 8 |
692562 |
|
Cabinet (almond) |
|
Appelez-nous
|
- |
|
|
|
| 8 |
692561 |
|
Cabinet (white) |
|
Appelez-nous
|
- |
|
|
|
| 9 |
WPW10339879 |
 |
Tie, Drain Hose (2) (Replaces: 692832) |
|
|
|
$ 7.11 |
|
|
| 10 |
692773 |
|
Hose, Drain |
|
Appelez-nous
|
- |
|
|
|
| 11 |
WP692400 |
 |
Nut, Push-in (2) (Replaces: 692400) |
|
|
Immediately |
$ 6.88 |
|
|
| 12 |
WP660975 |
 |
Plug, Top To Cabinet (alt.) (Replaces: 689587) |
|
|
|
$ 6.79 |
|
|
| 12 |
WP660975 |
|
Plug, Top To Cabinet (Replaces: 660975) |
|
|
|
$ 6.79 |
|
|
| 12 |
WP660975 |
|
Plug, Top To Cabinet (alt.) (Replaces: 694010) |
|
|
|
$ 6.79 |
|
|
| 13 |
W11213338 |
|
Connector, Hose (Replaces: 356739) |
|
|
|
$ 63.54 |
|
|
| 14 |
272855 |
|
Clamp, Hose |
|
Appelez-nous
|
- |
|
|
|
| 15 |
WP356471 |
 |
Cap, Siphon Break (Replaces: 356471) |
|
|
|
$ 6.98 |
|
|
| 16 |
WP356363 |
 |
Siphon Break (Replaces: 356363) |
|
|
Immediately |
$ 7.19 |
|
|
| 17 |
WP616099 |
 |
Clamp, Hose (Replaces: 272861) |
|
|
Immediately |
$ 7.03 |
|
|
| 18 |
695073 |
|
Hose, Water Inlet (siphon Break To Tub Ring) |
|
Appelez-nous
|
- |
|
|
|
| 19 |
358258 |
|
Pump, Complete (refer To Page 13 For Further Breakdown) |
|
Appelez-nous
|
- |
|
|
|
| 20 |
356926 |
|
Pulley, Pump |
|
Appelez-nous
|
- |
|
|
|
| 21 |
WP285655 |
 |
Clamp, Hose (Replaces: 272858) |
|
|
Immediately |
$ 7.55 |
|
|
| 22 |
W10854425 |
 |
Clip, Front Panel (2) (Replaces: 237823) |
|
|
Immediately |
$ 14.00 |
|
|
| 23 |
WP358652 |
|
Link, Leveling (Replaces: 358652) |
|
|
|
$ 76.69 |
|
|
| 24 |
WP359364 |
 |
Clip, Leveling Mechanism (2) (Replaces: 359364) |
|
|
Immediately |
$ 7.06 |
|
|
| 25 |
WP98234 |
 |
Clip, Ground (Replaces: 98234) |
|
|
Immediately |
$ 10.25 |
|
|
| 26 |
WP345670 |
 |
Lock, Top (2) (Replaces: 345670) |
|
|
Immediately |
$ 6.93 |
|
|
| 27 |
692632 |
|
Panel, Front (golden Harvest) |
|
Appelez-nous
|
- |
|
|
|
| 27 |
692631 |
|
Panel, Front (platinum) |
|
Appelez-nous
|
- |
|
|
|
| 27 |
692630 |
|
Panel, Front (toast) |
|
Appelez-nous
|
- |
|
|
|
| 27 |
692629 |
|
Panel, Front (almond) |
|
Appelez-nous
|
- |
|
|
|
| 27 |
692628 |
|
Panel, Front (white) |
|
|
|
$ 147.82 |
|
|
| 28 |
WP367594 |
 |
Foot, Front (2) (Replaces: 367594) |
|
|
Immediately |
$ 18.46 |
|
|
| 29 |
WP358594 |
 |
Foot, Rear (2) (Replaces: 358594) |
|
|
|
$ 12.24 |
|
|
| 30 |
WP308544 |
 |
Screw, 10-24 X 1/2 (8) (washer Cabinet To Dryer Supports) (Replaces: 308544) |
|
|
Immediately |
$ 6.98 |
|
|
| 31 |
694398 |
|
Pad, Extruded (2) |
|
Appelez-nous
|
- |
|
|
|
