02 - Washer/dryer Control Panel

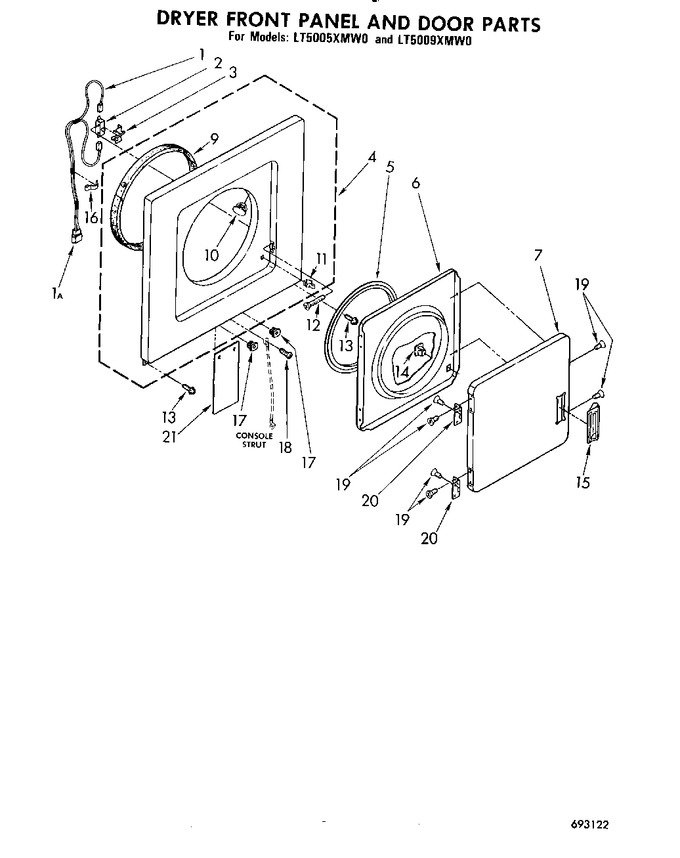

03 - Dryer Front Panel And Door


04 - Dryer Cabinet And Motor


05 - Dryer Bulkhead


06 - Dryer Supports And Washer Cabinet H


07 - Washer Top And Lid


08 - Washer Cabinet


09 - Washer Drive


10 - Water Pump


11 - Washer Gearcase


12 - Washer Basket Drive And Brake


13 - Water System


14 - Washer Agitator, Basket And Tub


15 - Sales Accessory, Exhaust Deflector


16 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	692728		Harness, Door Switch (includes Illus. 1a)		Appelez-nous	-
1	717253		Plug, Terminal (2-way) (connects With Main Dryer Harness)		Appelez-nous	-
2	W10820036		Switch, Door   (Replaces: 347207)			Immediately	$ 27.45
3	WP691581		Lever, Door Switch   (Replaces: 295998)			Immediately	$ 7.28
4	692622		Panel, Front (platinum)			Immediately	$ 14.18
4	692621		Panel, Front (toast)		Appelez-nous	-
4	692623		Panel, Front (golden Harvest)		Appelez-nous	-
4	285314		Panel, Front (white)   (Replaces: 692619)				$ 266.36
4	692620		Panel, Front (almond)		Appelez-nous	-
5	W11613302		Seal, Door   (Replaces: 685763)				$ 48.27
6	280077		Door, Rear   (Replaces: 695656)				$ 177.82
7	WP348205		Door, Front (white)   (Replaces: 348205)			Immediately	$ 132.65
7	689319		Door Front (golden Harvest)		Appelez-nous	-
7	695214		Door, Front (toast)		Appelez-nous	-
7	695215		Door, Front (platinum)		Appelez-nous	-
7	689314		Door, Front (almond)		Appelez-nous	-
9	279264		Bearing & Seal   (Replaces: 349462)			Immediately	$ 67.07
10	279220		Clip, Felt Pad (2)   (Replaces: 685203)				$ 18.59
11	279570		Strike, Panel   (Replaces: 696144)			Immediately	$ 8.00
12	WP98129		Screw, Door Switch Mounting (2)   (Replaces: 98129)				$ 6.80
13	WP681414		Screw, 10-16 X 1/2 (2) (front Panel To Side Panel)   (Replaces: 343641)			Immediately	$ 7.07
14	279570		Catch, Door   (Replaces: 690081)			Immediately	$ 8.00
15	WP686711		Handle, Door (white)   (Replaces: 686715)			Immediately	$ 7.16
15	689584		Handle, Door (golden Harvest)		Appelez-nous	-
15	689306		Handle, Door (almond)		Appelez-nous	-
15	695286		Handle, Door (platinum)		Appelez-nous	-
15	WP686711		Handle, Door (toast)   (Replaces: 695285)			Immediately	$ 7.16
16	692846		Support Protector		Appelez-nous	-
17	693739		Fastener, Push (2)		Appelez-nous	-
18	WP90767		Screw, Console Strut Mounting   (Replaces: 90767)			Immediately	$ 7.04
19	WP694091		Screw, Door Mount To Hinge & Panel (10)   (Replaces: 694091)				$ 6.47
20	WP348023		Hinge & Pin, Door (2)   (Replaces: 348023)				$ 7.58
21	693303		Barrier, Harness		Appelez-nous	-
