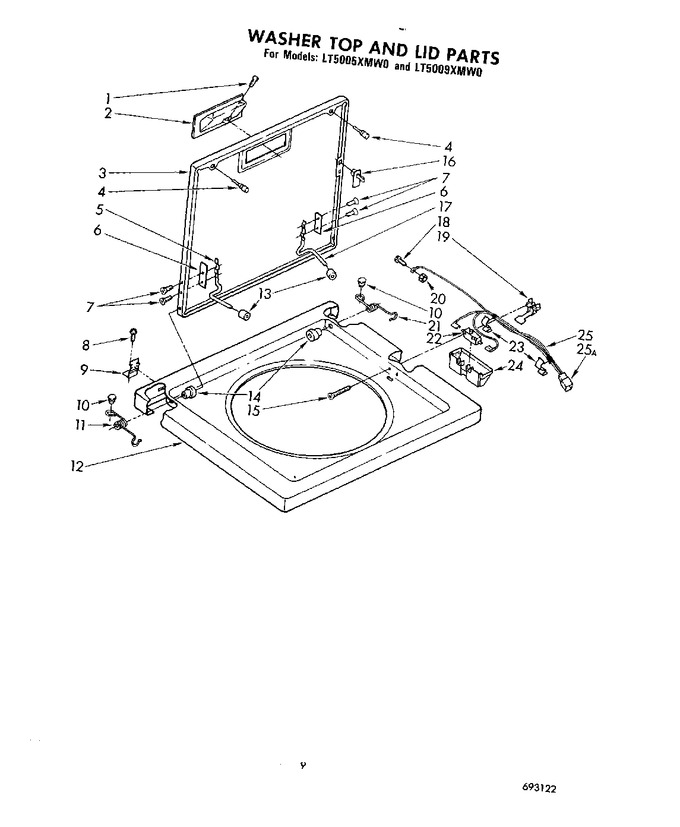

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 359243 | Screw, Lid Handle |
|
- | |||||
| 2 | 379891 | Handle, Lid (platinum) |
|
- | |||||
| 2 | 379884 | Handle, Lid (white) |
|
- | |||||
| 2 | 379885 | Handle, Lid (almond) |
|
- | |||||
| 2 | 379888 | Handle, Lid (golden Harvest) |
|
- | |||||
| 2 | 379890 | Handle, Lid (toast) |
|
- | |||||
| 3 | 693276 | Lid (white) |
|
- | |||||
| 3 | 693277 | Lid (almond) |
|
- | |||||
| 3 | 693280 | Lid (golden Harvest) |
|
- | |||||
| 3 | 693281 | Lid (toast) |
|
- | |||||
| 3 | 693282 | Lid (platinum) |
|
- | |||||
| 4 | 80011 | Bumper, Lid (2) (Replaces: 384475) |
|
Immediately | $ 8.98 | ||||
| 5 | 384458 | Hinge, Lid (l.h.) |
|
$ 76.11 | |||||
| 6 | WP21097 | Pad, Lid Hinge (2) (Replaces: 21097) |
|
$ 7.02 | |||||
| 7 | WPW10119828 | Screw, Lid Hinge Mounting (4) (Replaces: 18724) |
|
Immediately | $ 6.47 | ||||
| 8 | WP681414 | Screw, 10-16 X 1/2 (2) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 9 | WP692985 | Clip, Spring (2) (top To Cabinet) (Replaces: 692985) |
|
$ 6.99 | |||||
| 10 | 54690 | Plug, Button (2) |
|
- | |||||
| 11 | 384460 | Spring, Lid (l.h.) (includes Illus 10) |
|
- | |||||
| 12 | 384698 | Top (toast) |
|
- | |||||
| 12 | 384699 | Top (platinum) |
|
- | |||||
| 12 | WP384693 | Top (white) (Replaces: 384693) |
|
$ 274.65 | |||||
| 12 | 384694 | Top (almond) |
|
- | |||||
| 12 | 384697 | Top (golden Harvest) |
|
- | |||||
| 13 | 19119 | Bumper, Lid Hinge (2) |
|
$ 5.75 | |||||
| 14 | WP21258 | Bearing, Lid Hinge (2) (Replaces: 21258) |
|
Immediately | $ 6.87 | ||||
| 15 | 354764 | Screw & Washer, Lid Switch Shield (2) |
|
- | |||||
| 16 | WP358684 | Strike, Lid Switch (Replaces: 357913) |
|
Immediately | $ 6.90 | ||||
| 17 | 384459 | Hinge, Lid (r.h.) |
|
$ 76.63 | |||||
| 18 | WP308544 | Screw, Ground (10-24 X 1/2) (Replaces: 274707) |
|
Immediately | $ 6.98 | ||||
| 19 | 357347 | Actuator, Lid Switch |
|
- | |||||
| 20 | W10080180 | Nut, Ground Screw (10-24) (Replaces: 271166) |
|
$ 12.13 | |||||
| 21 | 384461 | Spring, Lid (r.h.) (includes Illus. 10) |
|
- | |||||
| 22 | W10820036 | (alt.) (Replaces: 364091) |
|
Immediately | $ 27.45 | ||||
| 22 | W10820036 | (alt.) (Replaces: 367034) |
|
Immediately | $ 27.45 | ||||
| 22 | 00-6163 | (alt.) (Replaces: 364090) |
|
$ 22.92 | |||||
| 22 | W10820036 | Switch, Lid (Replaces: 660308) |
|
Immediately | $ 27.45 | ||||
| 23 | WP90016 | Clip, Harness Routing (2) (Replaces: 90016) |
|
$ 10.19 | |||||
| 24 | WP359231 | Shield, Lid Switch (Replaces: 354289) |
|
$ 7.58 | |||||
| 25 | 691707 | Receptacle, Latching (3-way) (connects With Automatic Cabinet Harness) |
|
- | |||||
| 25 | 692732 | Harness, Lid Switch |
|
- |
