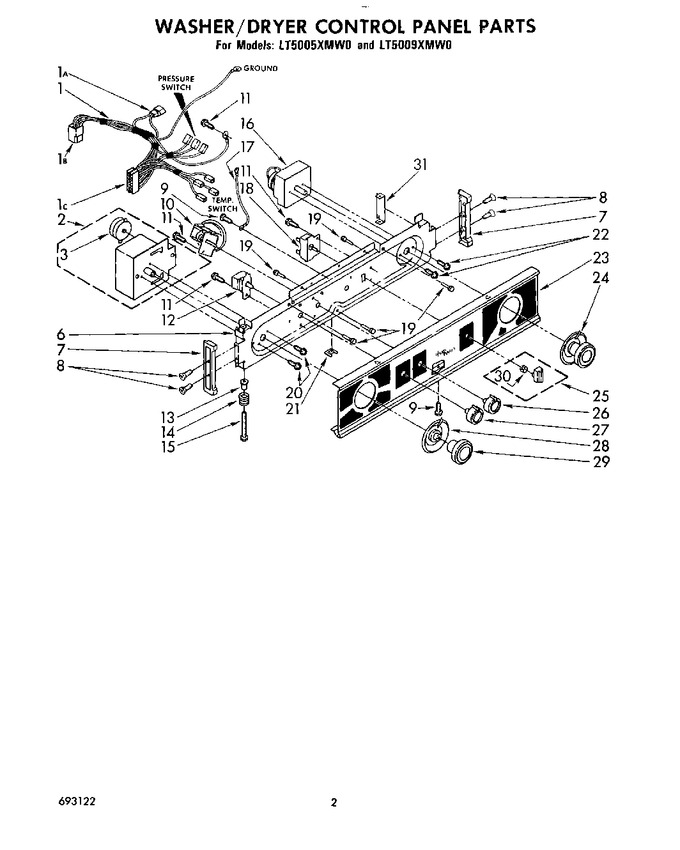

02 - Washer/dryer Control Panel


03 - Dryer Front Panel And Door


04 - Dryer Cabinet And Motor


05 - Dryer Bulkhead


06 - Dryer Supports And Washer Cabinet H


07 - Washer Top And Lid


08 - Washer Cabinet


09 - Washer Drive


10 - Water Pump


11 - Washer Gearcase


12 - Washer Basket Drive And Brake


13 - Water System


14 - Washer Agitator, Basket And Tub


15 - Sales Accessory, Exhaust Deflector


16 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	692995		Receptacle, Connector (connects With Lower Automatic Harness)		Appelez-nous	-
1	W10876590		Disconnect Block (connects With Automatic Timer)   (Replaces: 352089)				$ 11.48
1	717253		Plug, Terminal (2-way) (connects With Main Dryer Harness)		Appelez-nous	-
1	692733		Harness, Console Wiring (automatic) (includes Illus. 1a, 1b & 1c)		Appelez-nous	-
2	385114		Timer, Control (60 Hz.) (automatic Washer)		Appelez-nous	-
3	365941		Motor, Timer 60 Hz.		Appelez-nous	-
6	694338		Bracket, Control		Appelez-nous	-
7	692993		End Cap, Console (l.h. & R.h.)				$ 34.71
8	348689		Screw, End Cap Mounting (4) (6-32 X 3/4)				$ 66.92
9	WP694091		Screw, Mounting (2) No.8 Posidrive   (Replaces: 694091)				$ 6.47
10	383908		(alt.)		Appelez-nous	-
10	660954		Switch, Water Level		Appelez-nous	-
10	383907		(alt.)		Appelez-nous	-
11	WP3390631		Screw, Tapping (6)   (Replaces: 342202)				$ 7.04
12	370145		(alt.)		Appelez-nous	-
12	370146		(alt.)		Appelez-nous	-
12	660393		Switch, Water Temperature		Appelez-nous	-
13	693711		Sleeve, Console Lock Screw (2)				$ 7.35
14	WP693151		Spring, Console Lock (2)   (Replaces: 693151)				$ 6.72
15	693710		Screw, Console Lock (2)		Appelez-nous	-
16	694530		Timer, Control (60 Hz.) (dryer) (timer Motor Not Serviceable)		Appelez-nous	-
17	693175		Strut, Console		Appelez-nous	-
18	693169		Switch, Push-to-start		Appelez-nous	-
19	693152		Bumper, Console (5)				$ 9.86
20	WP356418		Screw, Timer Mounting (2)   (Replaces: 96435)				$ 7.13
21	694037		Clip, Console				$ 74.14
22	W11808444		Screw, Dryer Timer Mounting (2) (8-32 X 5/16)   (Replaces: 98139)		Appelez-nous	-
23	694328		Panel, Control		Appelez-nous	-
24	690200		Knob & Skirt, Dryer Timer		Appelez-nous	-
25	689857		Button, Push-to-start		Appelez-nous	-
26	693799		Knob & Clip, Water Level		Appelez-nous	-
27	693799		Knob & Clip, Water Temperature		Appelez-nous	-
28	692831		Dial, Timer		Appelez-nous	-
29	359206		Knob, Timer		Appelez-nous	-
30	599530307		Clip, Push-to-start Button   (Replaces: 90015)		Appelez-nous	-
31	WP692983		Lock, Console (2)   (Replaces: 692983)				$ 76.57
