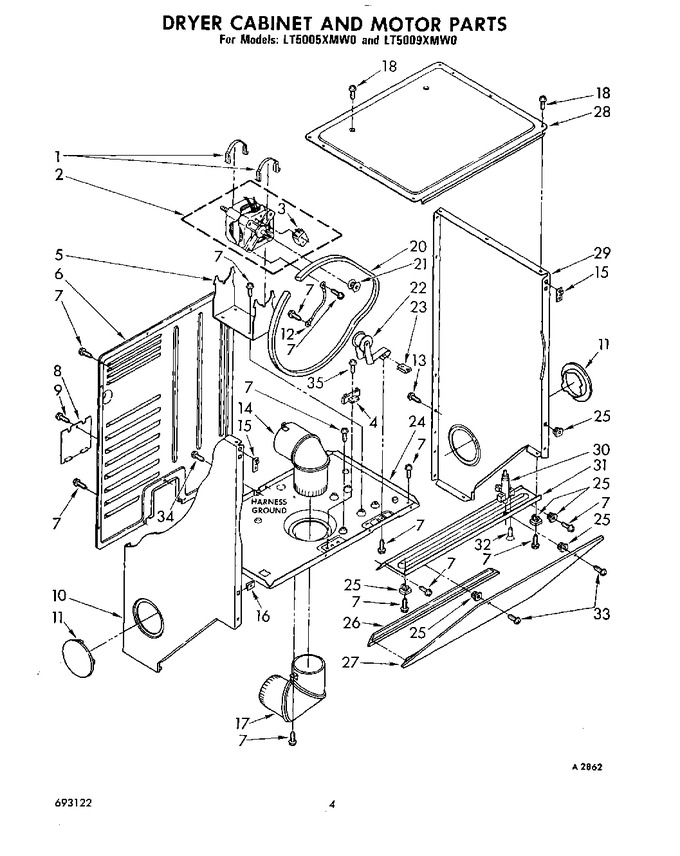

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP660658		Clamp, Motor Mounting (2)   (Replaces: 660658)				$ 7.05
1	WP660658		(alt.)   (Replaces: 685441)				$ 7.05
1	WP660658		(alt.)   (Replaces: 343481)				$ 7.05
2	279827		Motor, Main Drive (60 Hz.)   (Replaces: 695074)			Immediately	$ 172.76
3	279827		Switch, Motor Start   (Replaces: 337351)			Immediately	$ 172.76
4	279872		Power Resistor & Shield   (Replaces: 61806)				$ 67.45
5	696541		Bracket, Motor   (Replaces: 346846)				$ 83.88
6	692626		Panel, Rear		Appelez-nous	-
7	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
8	307972		Cover, Terminal Block		Appelez-nous	-
9	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 7.07
10	692615		Panel, Side (l.h.) (toast)		Appelez-nous	-
10	692616		Panel, Side (l.h.) (platinum)		Appelez-nous	-
10	WP3402293		Panel, Side (l.h.) (white)   (Replaces: 692613)				$ 313.14
10	692614		Panel, Side (l.h.) (almond)		Appelez-nous	-
10	692617		Panel, Side (l.h.) (golden Harvest)		Appelez-nous	-
11	692792		Plug, Side Panel (2) (toast)		Appelez-nous	-
11	692791		Plug, Side Panel (2) (almond)		Appelez-nous	-
11	692793		Plug, Side Panel (2) (platinum)		Appelez-nous	-
11	692794		Plug, Side Panel (2) (golden Harvest)		Appelez-nous	-
11	692790		Plug, Side Panel (2) (white)				$ 73.91
12	687261		Wire, Motor Ground		Appelez-nous	-
13	WP308544		Screw, 10-24 X 1/2 (8) (mounts Dryer To Dryer Supports)   (Replaces: 308544)			Immediately	$ 6.98
14	695524		Elbow, Upper		Appelez-nous	-
15	W10854425		Clip, Front Panel (2)   (Replaces: 237823)			Immediately	$ 14.00
16	WP98234		Clip, Ground   (Replaces: 98234)			Immediately	$ 10.25
17	3399603		Elbow, Lower   (Replaces: 696045)		Appelez-nous	-
18	WP308685		Screw, 10-16 X 1/2 (8) (dryer Top To Side Panels)   (Replaces: 695553)			Immediately	$ 7.08
20	3394652		Belt, Drive   (Replaces: 345675)			Immediately	$ 47.09
21	W10837625		Pulley, Motor (60 Hz.)   (Replaces: 694872)			Immediately	$ 10.94
22	WP691366		Idler & Bracket   (Replaces: 691366)			Immediately	$ 20.22
23	WP692771		Nut, Idler Bracket To Base   (Replaces: 692771)				$ 7.16
24	694413		Base, Dryer		Appelez-nous	-
25	WP692400		Nut, Push-in   (Replaces: 692400)			Immediately	$ 6.88
26	WP692926		Cove, Transition Panel (black)   (Replaces: 692926)				$ 80.30
27	692936		Panel, Transition (platinum)		Appelez-nous	-
27	692935		Panel, Transition (toast)		Appelez-nous	-
27	692937		Panel, Transition (golden Harvest)		Appelez-nous	-
27	692934		Panel, Transition (almond)		Appelez-nous	-
27	692933		Panel, Transition (white)				$ 199.04
28	WP692641		Top, Dryer   (Replaces: 692641)				$ 231.87
29	692610		Panel, Side (r.h.) (platinum)		Appelez-nous	-
29	692607		Panel, Side (r.h.) (white)		Appelez-nous	-
29	692609		Panel, Side (r.h.) (toast)		Appelez-nous	-
29	692611		Panel, Side (r.h.) (golden Harvest)		Appelez-nous	-
29	692608		Panel, Side (r.h.) (almond)		Appelez-nous	-
30	WP693145		Latch, Lid   (Replaces: 693145)				$ 76.65
31	692782		Closure, Control Area (almond)		Appelez-nous	-
31	692783		Closure, Control Area (toast)		Appelez-nous	-
31	692785		Closure, Control Area (golden Harvest)		Appelez-nous	-
31	WP692781		Closure, Control Area (white)   (Replaces: 692781)				$ 158.75
31	692784		Closure, Control Area (platinum)		Appelez-nous	-
32	354975		Screw & Washer (3) (lid Latch Mounting)		Appelez-nous	-
33	WP693304		Screw & Washer (2) (transition Panel To Closure)   (Replaces: 693304)				$ 7.04
34	WP681414		Screw, Ground (2) (10-32 X 1/2)   (Replaces: 690989)			Immediately	$ 7.07
35	WP3390631		Screw, Tapping (resistor To Base) (10-16 X 3/8)   (Replaces: 62863)				$ 7.04
