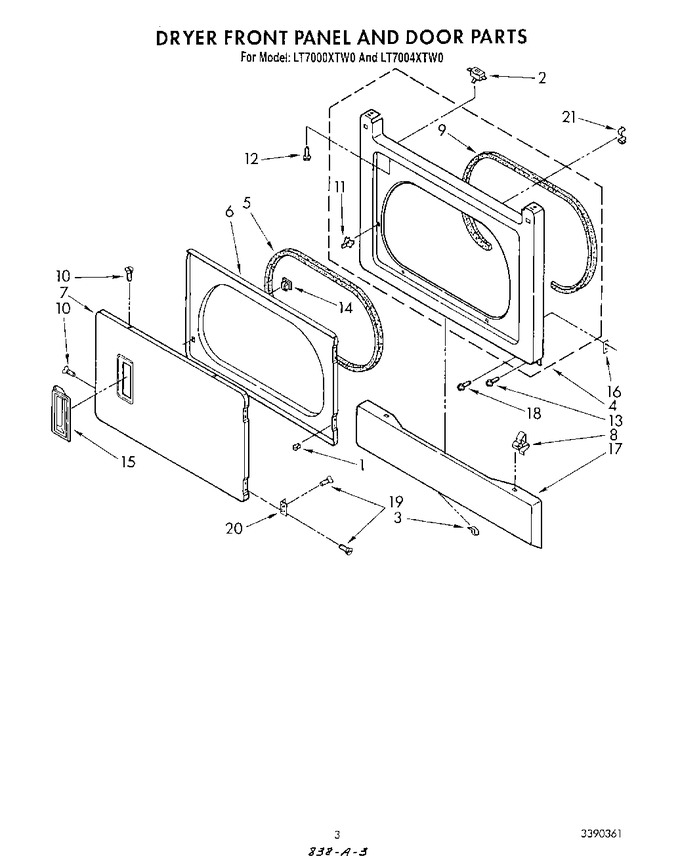

03 - Dryer Front Panel And Door


04 - Dryer Cabinet And Motor


05 - Dryer Bulkhead


06 - Dryer Support And Washer Harness


07 - Washer Top And Lid


08 - Washer Cabinet


09 - Brake, Clutch, Gearcase, Motor And Pump


10 - Machine Base


11 - Agitator, Basket And Tub


12 - Gearcase


13 - Brake And Drive Tube


14 - Washer Water System


15 - Miscellaneous , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3389249		Nut, Push (4)		Appelez-nous	-
2	WP3391902		Switch, Door   (Replaces: 3391901)			Immediately	$ 53.86
3	WP98234		Clip, Ground   (Replaces: 98234)			Immediately	$ 10.25
4	3389473		Panel, Front (white)		Appelez-nous	-
4	3389476		Panel, Front (platinum)		Appelez-nous	-
4	3389475		Panel, Front (toast)		Appelez-nous	-
4	3389477		Panel, Front (golden Harvest)		Appelez-nous	-
4	3389474		Panel, Front (almond)		Appelez-nous	-
5	WP3390735		Seal, Door   (Replaces: 3392239)				$ 117.54
6	3387881		Door, Rear		Appelez-nous	-
7	3387874		Door, Front (toast)		Appelez-nous	-
7	W11663440		Door, Front (white)   (Replaces: 3387872)				$ 233.43
7	3387873		Door, Front (almond)		Appelez-nous	-
7	3387876		Door, Front (golden Harvest)		Appelez-nous	-
7	3387875		Door, Front (platinum)		Appelez-nous	-
8	WP3388229		Retainer, Toe Panel (2)   (Replaces: 3388229)			Immediately	$ 7.61
9	WP3387242		Bearing & Seal   (Replaces: 3387242)			Immediately	$ 28.28
10	689791		Screw		Appelez-nous	-
11	279570		Strike, Panel   (Replaces: 696144)			Immediately	$ 8.00
12	WP3395530		Screw, Door Switch Mounting (2)   (Replaces: 697773)				$ 6.93
13	WP681414		Screw, 10-16 X 1/2 (2) (front Panel To Side Panel)   (Replaces: 343641)			Immediately	$ 7.07
14	279570		Catch, Door   (Replaces: 690081)			Immediately	$ 8.00
15	3389524		Handle, Door (toast)		Appelez-nous	-
15	3389522		Handle, Door (white)				$ 70.11
15	3389525		Handle, Door (platinum)		Appelez-nous	-
15	3389526		Handle, Door (golden Harvest)		Appelez-nous	-
15	3389523		Handle, Door (almond)		Appelez-nous	-
16	WP3390902		Clip, Door Hinge (2)   (Replaces: 3390902)				$ 10.00
17	3388962		Panel, Toe (golden Wheat)		Appelez-nous	-
17	3388960		Panel, Toe (toast)		Appelez-nous	-
17	3388961		Panel, Toe (platinum)		Appelez-nous	-
17	3388958		Panel, Toe (white)				$ 118.94
17	3388959		Panel, Toe (almond)		Appelez-nous	-
18	WPW10139210		Screw, Ground   (Replaces: 3390646)				$ 6.75
19	WP488627		Screw, Door Mount To Hinge & Panel (8)   (Replaces: 342055)				$ 6.81
20	W11175815		Hinge & Pin, Door (2)   (Replaces: 3389247)				$ 73.27
21	WP90016		Clip, Harness   (Replaces: 3391107)				$ 10.19
22	WP681414		Screw, 10-16 X 1/2   (Replaces: 697775)			Immediately	$ 7.07
