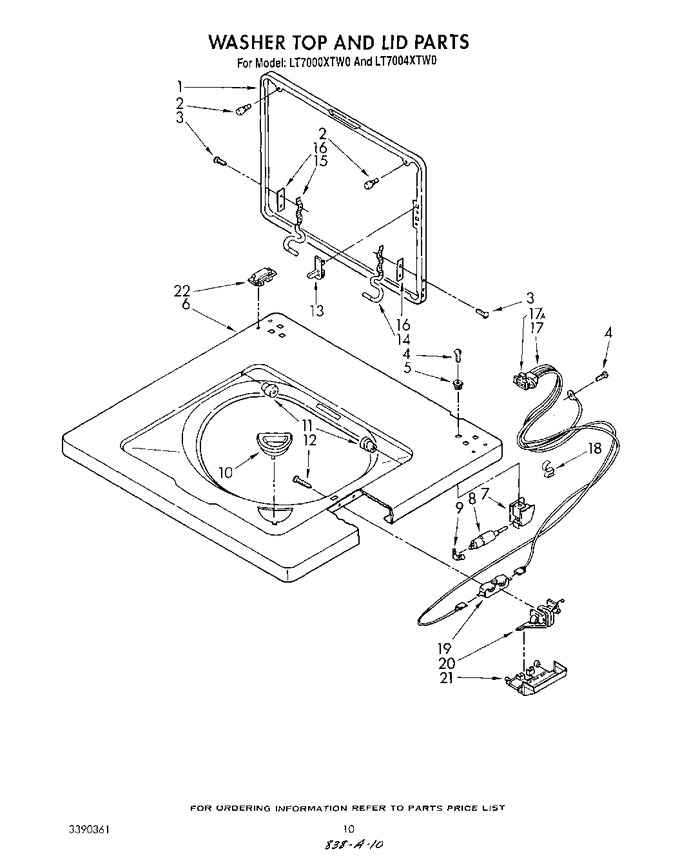

LT7000XTW0 | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	388450	Lid, Top (white)	Appelez-nous	-
1	388454	Lid, Top (golden Wheat)	Appelez-nous	-
1	388452	Lid, Top (platinum)	Appelez-nous	-
1	388453	Lid, Top (toast)	Appelez-nous	-
1	388451	Lid, Top (almond)	Appelez-nous	-
2	WP9724509	Bumper, Lid (2) (Replaces: 93770)		Immediately	$ 7.14
3	WPW10119828	Screw And Washer (Replaces: 3351355)		Immediately	$ 6.47
4	WP681414	Screw,10-16 X 1/2 (Replaces: 343641)		Immediately	$ 7.07
5	WP692400	Nut, Push-in (2) (Replaces: 692400)		Immediately	$ 6.88
6	3349818	Top, Console (almond)	Appelez-nous	-
6	3349817	Top, Console (white)		Immediately	$ 312.27
6	3349819	Top, Console (toast)	Appelez-nous	-
6	3349821	Top, Console (golden Wheat)	Appelez-nous	-
6	3349820	Top, Console (platinum)	Appelez-nous	-
7	3354020	Bracket, Mounting (2) (Replaces: 3350099)			$ 8.57
8	WP3350152	Retainer, Lid Assembly (2) (Replaces: 3350152)			$ 40.23
9	3350828	Clip, Retainer (2)			$ 57.81
10	WP3362952	Dispenser, Bleach (Replaces: 63289)		Immediately	$ 10.88
11	WP21258	Hinge, Bearing (2) (Replaces: 3391899)		Immediately	$ 6.87
12	354764	Screw And Washer	Appelez-nous	-
13	WP358684	Strike, Lid (Replaces: 358684)		Immediately	$ 6.90
14	3350101	Hinge, R.h.			$ 30.10
15	3350102	Hinge, L.h.			$ 30.83
16	WP21097	Pad, Hinge (2) (Replaces: 21097)			$ 7.02
17	3350213	Harness, Lid Switch	Appelez-nous	-
18	WP90016	Clip, Wire (4) (Replaces: 90016)			$ 10.19
19	W10820036	Switch, Lid (Replaces: 661517)		Immediately	$ 27.45
20	357347	Actuator, Switch	Appelez-nous	-
21	WP359231	Shield, Lid Switch (Replaces: 359231)			$ 7.58
22	W11116924	Locator, Top (Replaces: 3390481)			$ 19.50
17A	3350212	Plug, 3-way (uses Terminal 94613)	Appelez-nous	-
