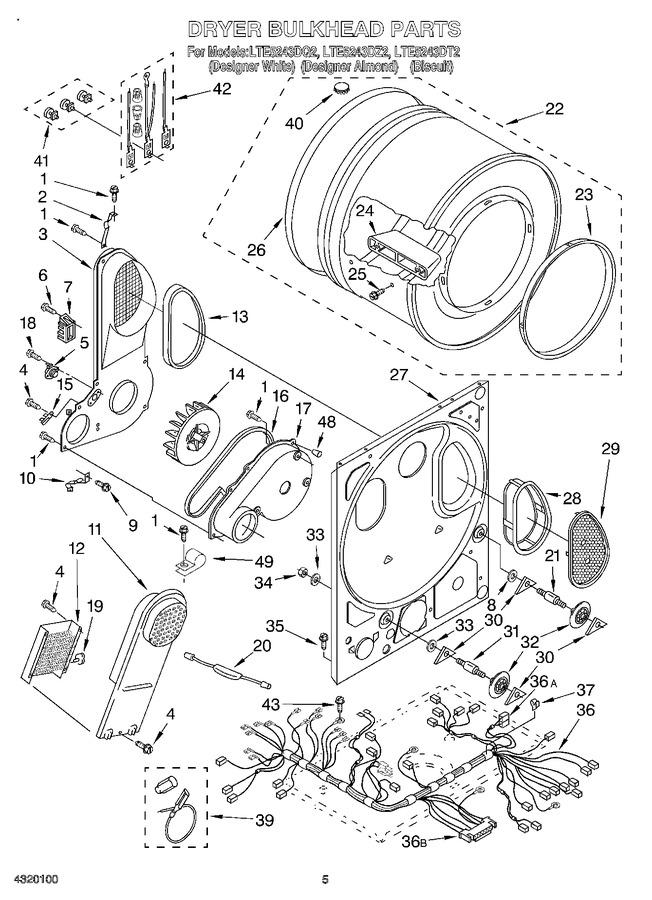

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 2 | 345396 | Clip, Air Duct To Bulkhead (Replaces: 3395396) |
|
- | |||||
| 3 | 696547 | Air Duct & Bracket |
|
- | |||||
| 4 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 5 | WP3398128 | Thermostat, Internal Bias (Replaces: 3398128) |
|
Immediately | $ 119.39 | ||||
| 6 | WP308685 | Screw, Terminal Block To Bracket (2) (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 7 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 20.72 | |||||
| 8 | WP3388703 | Washer (Replaces: 3388703) |
|
$ 6.72 | |||||
| 9 | WP489463 | Screw, 8-18 X 5/8 (Replaces: 489463) |
|
$ 7.04 | |||||
| 10 | 279771 | Clip, Heater Box To Bulkhead (Replaces: 3398161) |
|
$ 12.90 | |||||
| 11 | WP3401380 | Box, Heater (Replaces: 3401380) |
|
Immediately | $ 253.07 | ||||
| 12 | WP279843 | Element, Heater (Replaces: 3403586) |
|
Immediately | $ 141.62 | ||||
| 13 | WP339956 | Seal, Air Duct To Bulkhead (Replaces: 339956) |
|
Immediately | $ 7.77 | ||||
| 14 | WP696426 | Wheel, Blower (Replaces: 696426) |
|
Immediately | $ 117.16 | ||||
| 15 | WP3399849 | Fuse, Thermal (Replaces: 3399849) |
|
Immediately | $ 32.42 | ||||
| 16 | 8066094 | Seal, Fan Scroll |
|
$ 7.98 | |||||
| 17 | WP696418 | Fan Scroll (Replaces: 696418) |
|
$ 104.56 | |||||
| 18 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 19 | WP3404154 | Thermostat, Heater Box (200° F) (Replaces: 3404154) |
|
Immediately | $ 117.14 | ||||
| 20 | 279872 | Resistor Assembly (Replaces: 3406652) |
|
$ 67.45 | |||||
| 21 | WPW10359269 | Shaft, Drum Roller (r.h.) (Replaces: 3399507) |
|
Immediately | $ 42.57 | ||||
| 22 | 3391834 | Drum, Dryer (Replaces: 695943) |
|
$ 319.29 | |||||
| 23 | WP3394508 | Bearing, Ring (Replaces: 3394508) |
|
$ 113.02 | |||||
| 24 | 00685207 | Baffle, Drum (3) (Replaces: 685207) |
|
$ 293.40 | |||||
| 25 | WPW10109200 | Screw, Baffle Mounting (6) (11-16 X 3/4) (Replaces: 97787) |
|
Immediately | $ 7.20 | ||||
| 26 | 279735 | Seal, Drum Rear (Replaces: 345648) |
|
Immediately | $ 60.04 | ||||
| 27 | 279848 | Bulkhead (Replaces: 695931) |
|
$ 312.67 | |||||
| 28 | W10828351 | Screen, Lint (Replaces: 348399) |
|
Immediately | $ 50.62 | ||||
| 29 | W10828351 | Cover, Lint Screen Outlet (Replaces: 685273) |
|
Immediately | $ 50.62 | ||||
| 30 | WPW10512946 | Tri Ring (4) (Replaces: 690997) |
|
Immediately | $ 7.92 | ||||
| 31 | WPW10359270 | Shaft, Drum Roller (l.h.) (Replaces: 3399506) |
|
Immediately | $ 65.44 | ||||
| 32 | 349241T | Roller, Support (2) (Replaces: 3397588) |
|
Immediately | $ 26.58 | ||||
| 33 | WP348197 | Washer, Support (4) (Replaces: 348197) |
|
$ 6.47 | |||||
| 34 | WP3359452 | Nut, 3/8-16 (2) (Replaces: 3359452) |
|
Immediately | $ 6.47 | ||||
| 35 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 3390631) |
|
$ 7.04 | |||||
| 36 | 3395683 | Receptacle, Multi-terminal (connects With Motor) (dryer) |
|
Immediately | $ 46.67 | ||||
| 36 | 3406941 | Harness, Main Dryer Wiring (includes Nos.36a, 36b) |
|
- | |||||
| 36 | 717252 | Receptacle, Terminal (2-way) (connects With Door Switch Harness) |
|
- | |||||
| 37 | 693141 | Clip, Wiring Harness (3) |
|
- | |||||
| 39 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.13 | ||||
| 40 | 8066086 | Drum, Hole Plug (Replaces: 3977358) |
|
$ 9.68 | |||||
| 41 | 279393 | Screw Kit (for Terminal Block) |
|
Immediately | $ 42.63 | ||||
| 42 | 279318 | Terminal, Tinned & Brass (3) (includes Illus. 41) |
|
Immediately | $ 90.89 | ||||
| 43 | W10850756 | Screw, Ground (2) (10-32 X 5/8) (Replaces: 697776) |
|
$ 6.98 | |||||
| 48 | W10491983 | Cap, Screw (Replaces: 359702) |
|
- | |||||
| 49 | 488946 | Clip, Strain Relief (Replaces: 255563) |
|
$ 18.41 |
