Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 279823 Side Exhaust Extension Kit (complete) Special Order $ 136.75

2 WP488729 Screw   (Replaces: 488729) In-Stock Immediately $ 7.01

3 WP3395536 Clip   (Replaces: 3395536) Special Order $ 73.09


    View Diagram in Separate Window     Print Icon   Print Part List

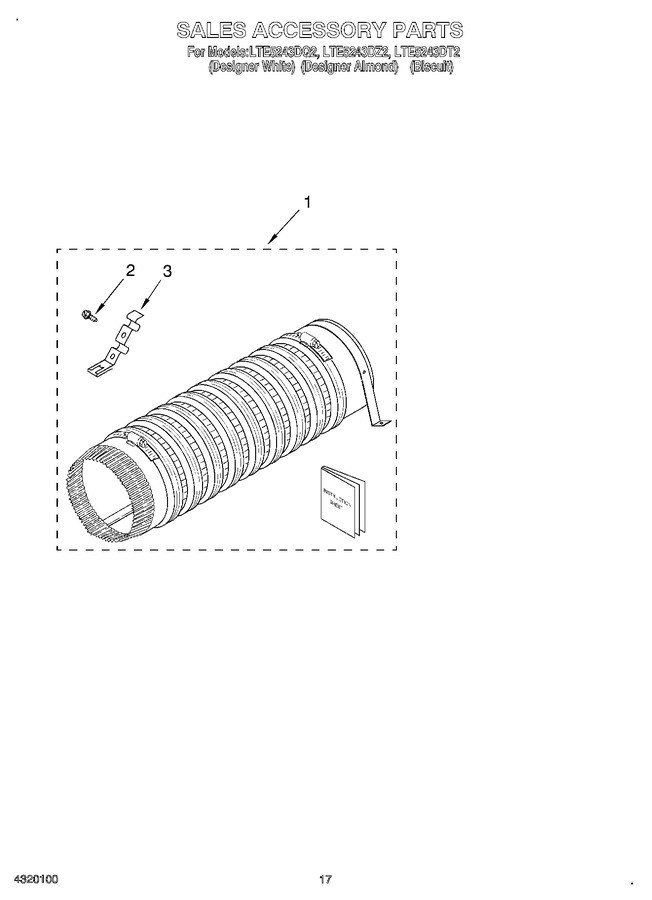

Diagram for LTE5243DT2
