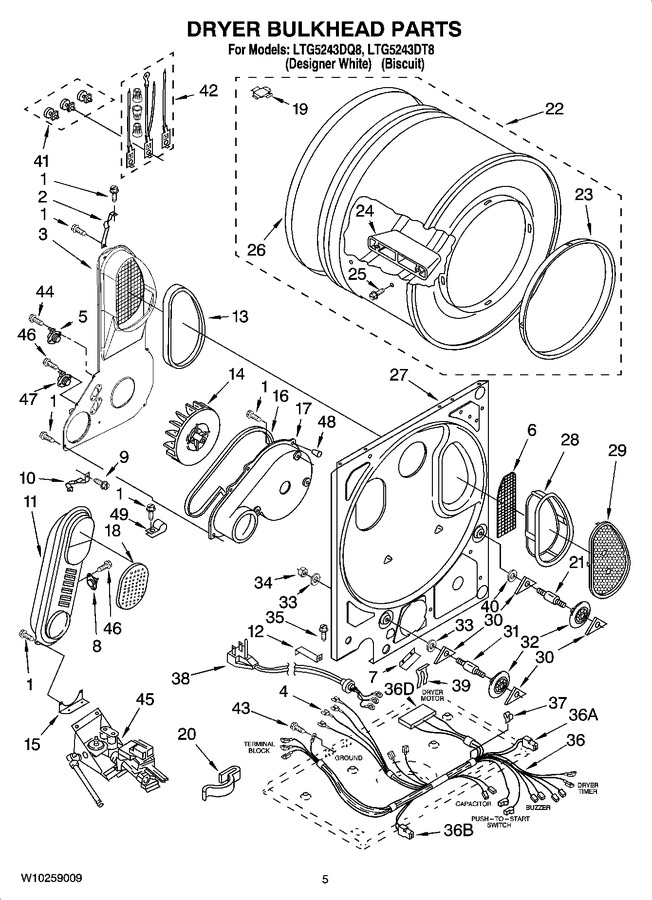

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
WP681414 |
 |
Screw,10-16 X 1/2 (Replaces: 343641) |
|
|
Immediately |
$ 7.07 |
|
|
| 2 |
345396 |
|
Clip, Air Duct To Bulkhead (Replaces: 3395396) |
|
Appelez-nous
|
- |
|
|
|
| 3 |
8566187 |
|
Air Duct & Cover |
|
Appelez-nous
|
- |
|
|
|
| 4 |
WP94614 |
 |
Terminal (Replaces: 94614) |
|
|
|
$ 6.90 |
|
|
| 5 |
WP3398128 |
 |
Thermostat, Internal Bias (Replaces: 3398128) |
|
|
Immediately |
$ 119.39 |
|
|
| 6 |
348378 |
|
Screen, Back-up |
|
|
|
$ 38.60 |
|
|
| 7 |
697571 |
|
Guard, Sock |
|
Appelez-nous
|
- |
|
|
|
| 8 |
W11050897 |
 |
Thermostat, Heater Box 205~f 96~c (Replaces: 3403140) |
|
|
Immediately |
$ 13.77 |
|
|
| 9 |
WP489463 |
|
Screw, 8-18 X 5/8 (Replaces: 489463) |
|
|
|
$ 7.04 |
|
|
| 10 |
279771 |
|
Clip, Heater Box To Bulkhead (Replaces: 3398161) |
|
|
|
$ 12.90 |
|
|
| 11 |
697269 |
|
Heater Box |
|
Appelez-nous
|
- |
|
|
|
| 12 |
3387208 |
|
Support, Corner Gas |
|
Appelez-nous
|
- |
|
|
|
| 13 |
WP339956 |
 |
Seal, Air Duct To Bulkhead (Replaces: 339956) |
|
|
Immediately |
$ 7.77 |
|
|
| 14 |
WP696426 |
 |
Wheel, Blower (Replaces: 696426) |
|
|
Immediately |
$ 117.16 |
|
|
| 15 |
347455 |
|
Support, Heater Box |
|
Appelez-nous
|
- |
|
|
|
| 16 |
8066094 |
|
Seal, Fan Scroll |
|
|
|
$ 7.98 |
|
|
| 17 |
WP696418 |
|
Fan Scroll (Replaces: 696418) |
|
|
|
$ 104.56 |
|
|
| 18 |
345335 |
|
Cover, Manifold |
|
|
|
$ 94.50 |
|
|
| 19 |
8066086 |
|
Drum, Hole Plug |
|
|
|
$ 9.68 |
|
|
| 20 |
WP3400935 |
 |
Clip, Harness (Replaces: 3400935) |
|
|
|
$ 8.74 |
|
|
| 21 |
WPW10359269 |
 |
Shaft, Drum Roller (r.h.) (Replaces: 3399507) |
|
|
Immediately |
$ 42.57 |
|
|
| 22 |
3391834 |
 |
Drum, Dryer (Replaces: 695943) |
|
|
|
$ 319.29 |
|
|
| 23 |
WP3394508 |
 |
Ring, Bearing (Replaces: 3394508) |
|
|
|
$ 113.02 |
|
|
| 24 |
00685207 |
|
Baffle, Drum (3) (Replaces: 685207) |
|
|
|
$ 293.40 |
|
|
| 25 |
W10853898 |
|
Screw, 8-16 X 1/2 (Replaces: W10219342) |
|
|
Immediately |
$ 6.98 |
|
|
| 26 |
279735 |
 |
Seal, Drum Rear (Replaces: 345648) |
|
|
Immediately |
$ 60.04 |
|
|
| 27 |
697540 |
|
Bulkhead |
|
Appelez-nous
|
- |
|
|
|
| 28 |
W10828351 |
 |
Lint Screen (Replaces: 8531964) |
|
|
Immediately |
$ 50.62 |
|
|
| 29 |
W10828351 |
|
Cover, Lint Screen Outlet (Replaces: 8531967) |
|
|
Immediately |
$ 50.62 |
|
|
| 30 |
WPW10512946 |
 |
Tri Ring (4) (Replaces: 690997) |
|
|
Immediately |
$ 7.92 |
|
|
| 31 |
WPW10359270 |
 |
Shaft, Drum Roller (l.h.) (Replaces: 3399506) |
|
|
Immediately |
$ 65.44 |
|
|
| 32 |
349241T |
 |
Roller, Support (2) (Replaces: 3397590) |
|
|
Immediately |
$ 26.58 |
|
|
| 33 |
WP348197 |
 |
Washer, Support (4) (Replaces: 348197) |
|
|
|
$ 6.47 |
|
|
| 34 |
WP3359452 |
 |
Nut, 3/8-16 (2) (Replaces: 3359452) |
|
|
Immediately |
$ 6.47 |
|
|
| 35 |
WP3390631 |
 |
Screw, 10-16 X 3/8 (Replaces: 3390631) |
|
|
|
$ 7.04 |
|
|
| 36 |
8299829 |
|
Harness, Main Dryer Wiring (includes Illus. 36a, 36b, 36d) |
|
Appelez-nous
|
- |
|
|
|
| 37 |
693141 |
|
Clip, Wiring Harness (3) |
|
Appelez-nous
|
- |
|
|
|
| 38 |
694018 |
|
Cord, Power |
|
Appelez-nous
|
- |
|
|
|
| 39 |
W11712577 |
 |
Strain Relief, Power Cord (Replaces: 694415) |
|
|
Immediately |
$ 6.66 |
|
|
| 40 |
WP3388703 |
|
Washer-support (Replaces: 3388703) |
|
|
|
$ 6.72 |
|
|
| 41 |
279393 |
 |
Screw Kit (for Terminal Block) |
|
|
Immediately |
$ 42.63 |
|
|
| 42 |
279318 |
 |
Terminal, Tinned & Brass (3) (includes Illus. 41) |
|
|
Immediately |
$ 90.89 |
|
|
| 43 |
W10850756 |
|
Screw, 10-32 X 1/2 (Replaces: 697776) |
|
|
|
$ 6.98 |
|
|
| 44 |
WP488729 |
 |
Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
|
Immediately |
$ 7.01 |
|
|
| 45 |
3402856 |
|
Burner (refer To Page 19 For Complete Breakdown) |
|
Appelez-nous
|
- |
|
|
|
| 46 |
WP90767 |
 |
Screw, 8-18 X 3/8 (Replaces: 90767) |
|
|
Immediately |
$ 7.04 |
|
|
| 47 |
WP8572767 |
 |
Thermal Limiter 192 F (89c) (Replaces: 8572767) |
|
|
Immediately |
$ 50.41 |
|
|
| 48 |
W10491983 |
|
Cap, Screw (Replaces: 359702) |
|
Appelez-nous
|
- |
|
|
|
| 49 |
488946 |
|
Clip, Strain Relief (Replaces: 255563) |
|
|
|
$ 18.41 |
|
|
| 36A |
717252 |
|
Receptacle, Terminal (2-way) (connects With Door Switch Harness) |
|
Appelez-nous
|
- |
|
|
|
| 36B |
697780 |
|
Receptacle, (gas Valve) |
|
Appelez-nous
|
- |
|
|
|
| 36D |
3395683 |
 |
Receptacle, Multi-terminal (connects With Dryer Motor) |
|
|
Immediately |
$ 46.67 |
|
|
View Diagram in Separate Window
Print Part List
