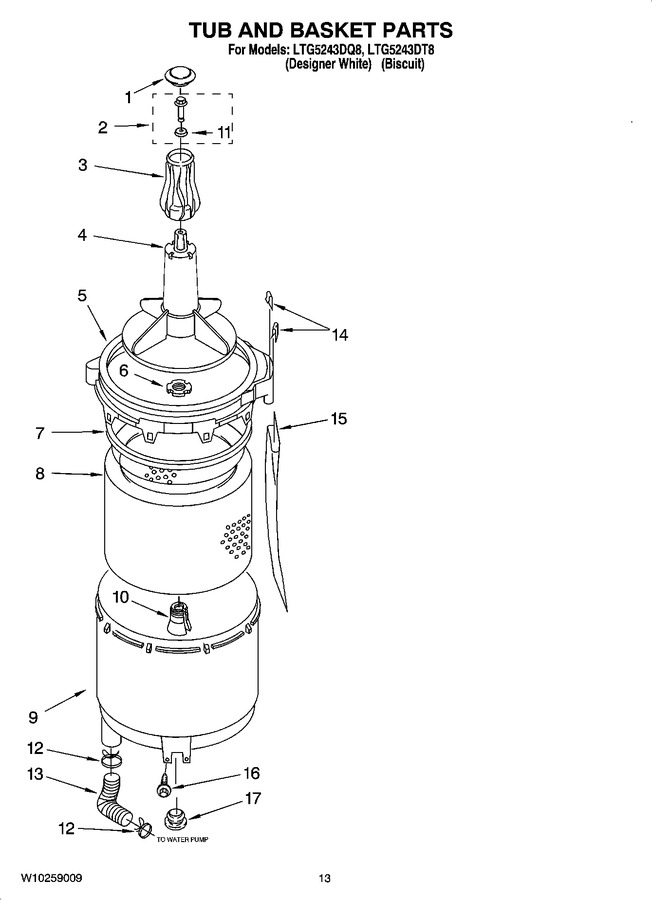

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3355758		Cap, Agitator   (Replaces: 3355758)			Immediately	$ 8.10
2	WP358237		Screw & Washer (5-16-24 X 1)   (Replaces: 358237)			Immediately	$ 7.97
3	WP63840		Filter, Agitator   (Replaces: 63840)			Immediately	$ 157.96
4	WP3349098		Agitator   (Replaces: 3349098)			Immediately	$ 156.38
5	64175		Tub Ring & Gasket (includes Illus. 7, 14 & 15)				$ 80.56
6	WP21366		Nut, Spanner   (Replaces: 21366)			Immediately	$ 8.00
7	WP3359587		Gasket, Tub Ring   (Replaces: 3359587)				$ 25.22
8	3351985		Basket				$ 191.30
9	W10811358		Tub   (Replaces: 8066082)				$ 271.25
10	WP389140		Block, Basket Drive   (Replaces: 389140)			Immediately	$ 24.74
11	WP3949550		Washer   (Replaces: 3949550)			Immediately	$ 9.98
12	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 7.03
13	280120		Hose, Tub To Pump   (Replaces: 8066201)				$ 35.80
14	8577411		Clip, Retaining				$ 7.25
15	356398		Tube, Drain Off				$ 71.61
16	WP273556		Screw & Washer (tub Mounting)   (Replaces: 357640)			Immediately	$ 7.04
17	W10814296		Gasket, Center Post   (Replaces: 383727)			Immediately	$ 8.26

    View Diagram in Separate Window       Print Part List
