SELECT A DIAGRAM

01 - Washer/dryer Control Panel


02 - Dryer Front Panel And Door


03 - Dryer Cabinet And Motor


04 - Dryer Bulkhead


05 - Dryer Support And Washer Harness

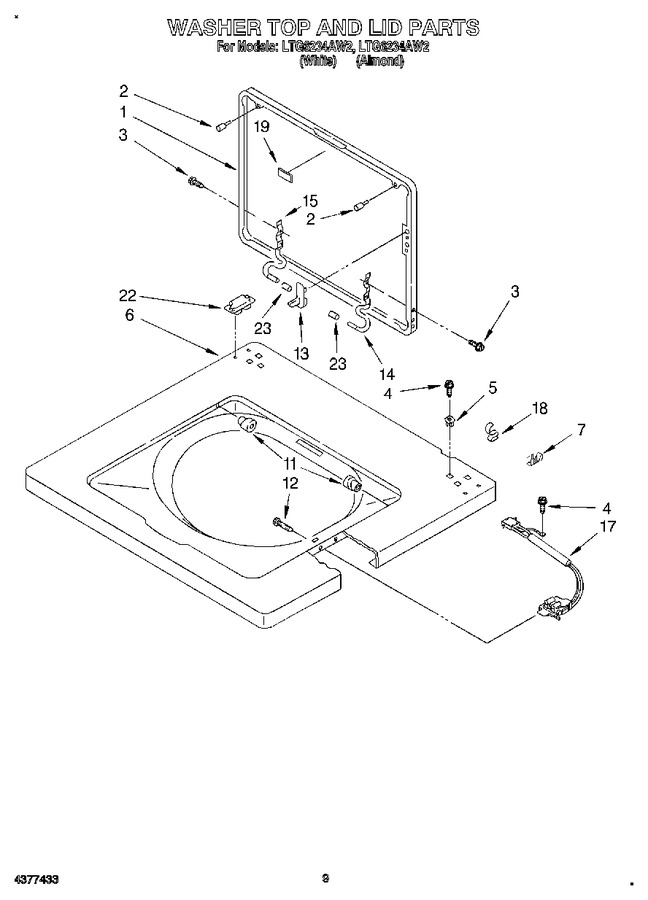

06 - Washer Top And Lid


07 - Washer Cabinet


08 - Brake, Clutch, Gearcase, Motor And Pump


09 - Machine Base


10 - Agitator, Basket And Tub


11 - Gearcase


12 - Brake And Drive Tube


13 - Washer Water System


14 - Miscellaneous, Lit/optional


15 - 3401795 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3351653		Lid, Top (almond)		Appelez-nous	-
1	3351652		Lid, Top (white)		Appelez-nous	-
2	WP9724509		Bumper, Lid (2)   (Replaces: 93770)			Immediately	$ 7.14
3	WPW10119828		Screw And Washer   (Replaces: 3351355)			Immediately	$ 6.47
4	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.07
5	WP692400		Nut, Push-in (2)   (Replaces: 692400)			Immediately	$ 6.88
6	3349798		Top, Console (white)		Appelez-nous	-
6	3349799		Top, Console (almond)		Appelez-nous	-
7	W10113937		Clip, Grounding   (Replaces: 357572)				$ 9.75
11	WP21258		Hinge, Bearing (2)   (Replaces: 21258)			Immediately	$ 6.87
12	WP3356311		Screw And Washer   (Replaces: 3356311)				$ 6.98
13	WP358684		Strike, Lid   (Replaces: 358684)			Immediately	$ 6.90
14	WP54583		Hinge, R.h.   (Replaces: 54583)				$ 26.60
15	WP54584		Hinge, L.h.   (Replaces: 54584)				$ 30.09
17	WP3355458		Switch, Lid   (Replaces: 3355458)			Immediately	$ 66.38
18	WP90016		Clip, Wire (4)   (Replaces: 90016)				$ 10.19
19	3390193		Strike, Magnetic		Appelez-nous	-
22	W11116924		Locator, Top   (Replaces: 3390481)				$ 19.50
23	19119		Bumper, Lid Hinge				$ 5.75

    View Diagram in Separate Window       Print Part List
