01 - Washer/dryer Control Panel


02 - Dryer Front Panel And Door


03 - Dryer Cabinet And Motor


04 - Dryer Bulkhead


05 - Dryer Support And Washer Harness


06 - Washer Top And Lid


07 - Washer Cabinet


08 - Brake, Clutch, Gearcase, Motor And Pump


09 - Machine Base


10 - Agitator, Basket And Tub


11 - Gearcase


12 - Brake And Drive Tube


13 - Washer Water System


14 - Miscellaneous, Lit/optional

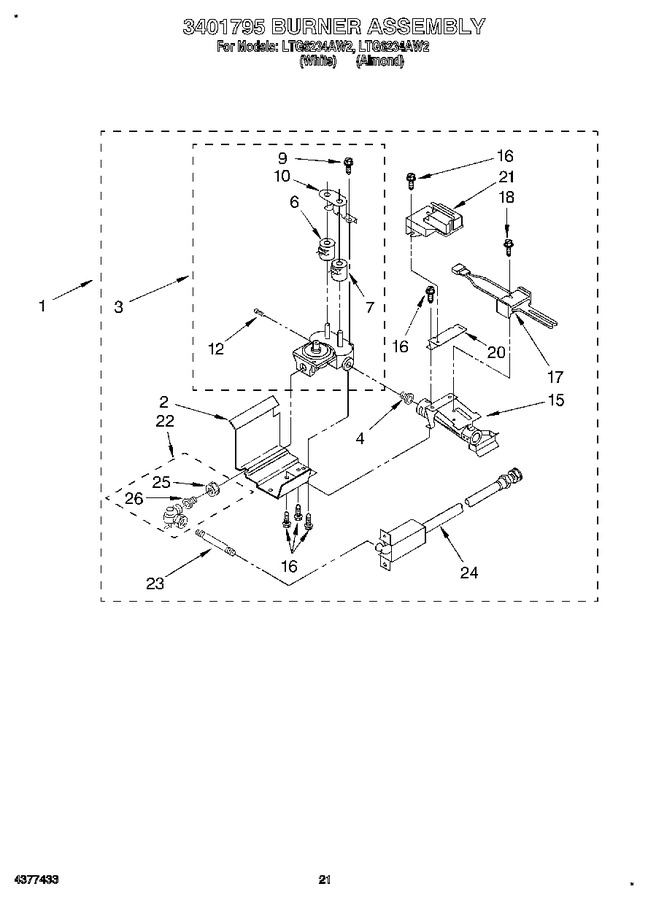

15 - 3401795 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3401795		Burner Assembly 60 Hz.		Appelez-nous	-
2	3391699		Base, Burner		Appelez-nous	-
3	279889		Valve, 60 Hz.   (Replaces: 3401776)				$ 200.94
4	15422		Orifice (l.p. Gas)				$ 3,097.28
4	3394360		Orifice (natural Gas)		Appelez-nous	-
6	279834		Coil, 60 Hz. (split)   (Replaces: 694539)			Immediately	$ 29.57
7	279834		Coil, 60 Hz.   (Replaces: 694540)			Immediately	$ 29.57
9	694421		Screw, 8-32		Appelez-nous	-
10	694538		Bracket, Shunt				$ 72.05
12	W10295523		Plug, Pipe   (Replaces: 239822)		Appelez-nous	-
15	8578392		Burner   (Replaces: 3392268)		Appelez-nous	-
16	WP693995		Screw, 8-18 X 3/8   (Replaces: 3387057)			Immediately	$ 6.47
17	279311		Ignitor   (Replaces: 686590)			Immediately	$ 71.01
18	WPW10366705		Screw And Washer 8-32 X 1   (Replaces: 3393909)				$ 6.75
20	697409		Bracket, Sensor		Appelez-nous	-
21	WP338906		Sensor, Radiant   (Replaces: 338906)			Immediately	$ 46.72
22	697441		Valve, Shutoff		Appelez-nous	-
23	W10110398		Nipple, Short   (Replaces: 3391845)		Appelez-nous	-
24	3391118		Supply Line (gas)		Appelez-nous	-
25	233076		Nut, Compression				$ 43.19
26	3393767		Pipe				$ 123.97
26	3392235A		Conversion Kit (type 1, 2 & 3) To Type (4) L.p.g.   (Replaces: 3392235)			Immediately	$ 70.11
