01 - Convection Oven

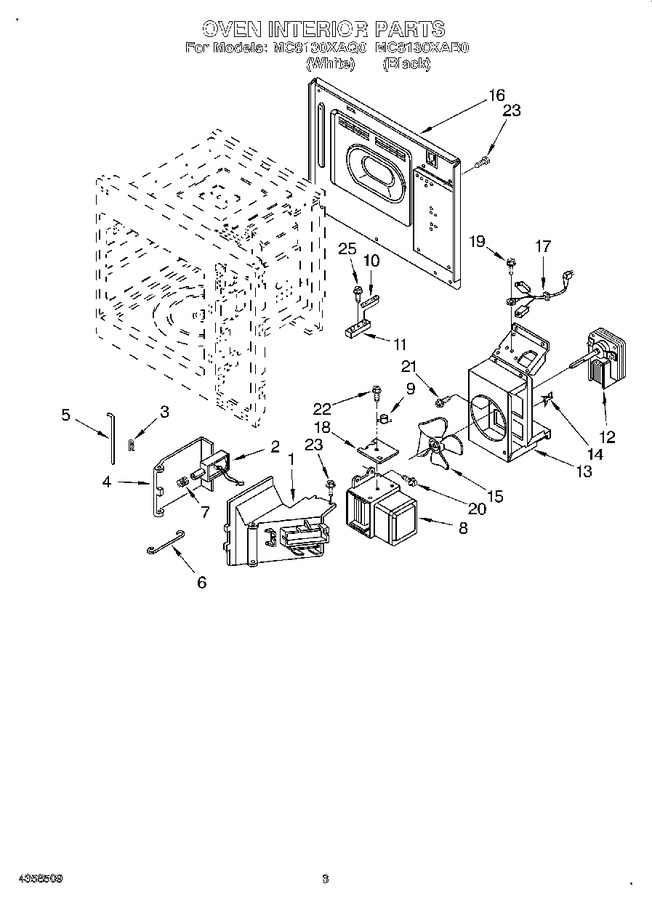

02 - Oven Interior
03 - Oven
04 - Base Plate
05 - Door And Latch
06 - Control Panel
07 - Wiring, Literature
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4358436 | Air Duct |
|
- | |||||
| 2 | 4358437 | Solenoid |
|
- | |||||
| 3 | 4358438 | Clip |
|
- | |||||
| 4 | 4358439 | Bracket, Damper |
|
- | |||||
| 5 | 4358440 | Shaft |
|
- | |||||
| 6 | 4358441 | Connector, Damper |
|
- | |||||
| 7 | 4358442 | Spring, Solenoid |
|
- | |||||
| 8 | 4358059 | Magnatron |
|
- | |||||
| 9 | 4358443 | Thermostat, Magnatron |
|
- | |||||
| 10 | 4358263 | Fuse |
|
- | |||||
| 11 | 4158581 | Holder, Fuse |
|
- | |||||
| 12 | 4358444 | Motor, Fan |
|
- | |||||
| 13 | 4358445 | Bracket, Mount |
|
- | |||||
| 14 | 4392027 | Clip (Replaces: 4358267) |
|
$ 138.41 | |||||
| 15 | 4358446 | Fan Blade |
|
- | |||||
| 16 | 4358447 | Cover, Back |
|
- | |||||
| 17 | 4158832 | Cord, Power |
|
- | |||||
| 18 | 4358060 | Bracket, Thermostat |
|
- | |||||
| 19 | 4358448 | Screw |
|
- | |||||
| 20 | WP3400094 | Screw (Replaces: 4158747) |
|
$ 7.14 | |||||
| 21 | 4344826 | Screw (Replaces: 4358449) |
|
$ 14.31 | |||||
| 22 | 4358450 | Screw |
|
- | |||||
| 23 | 4358192 | Screw |
|
- | |||||
| 25 | 4358451 | Screw |
|
- |
