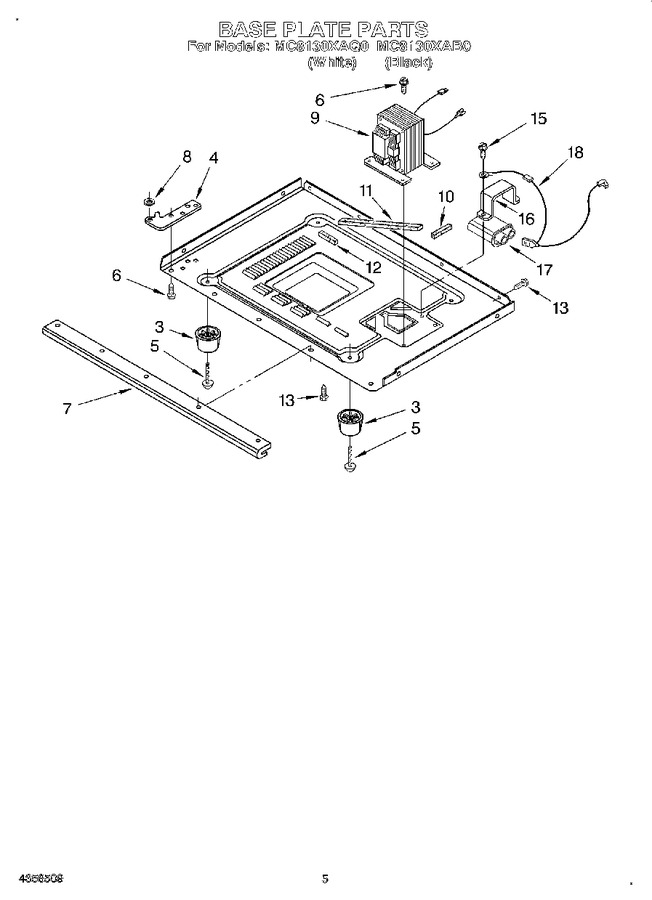

04 - Base Plate
05 - Door And Latch
06 - Control Panel
07 - Wiring, Literature
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 4358486 | Base Plate |
|
- | |||||
| 3 | 4358487 | Foot |
|
- | |||||
| 4 | 4358488 | Hinge, Lower |
|
- | |||||
| 5 | 4358381 | Screw |
|
- | |||||
| 6 | WP3400094 | Screw (Replaces: 4158747) |
|
$ 7.14 | |||||
| 7 | 4358490 | Decorator Panel |
|
- | |||||
| 8 | 4339331 | Washer |
|
- | |||||
| 9 | 4358491 | Transformer |
|
- | |||||
| 10 | 4358492 | Foam Seal |
|
- | |||||
| 11 | 4358493 | Foam Seal |
|
- | |||||
| 12 | 4158864 | Foam Seal |
|
- | |||||
| 13 | 4358192 | Screw |
|
- | |||||
| 15 | 4358448 | Screw |
|
- | |||||
| 16 | 4358494 | Bracket, Capacitor |
|
- | |||||
| 17 | 4158466 | Capacitor |
|
- | |||||
| 18 | 4358495 | High Voltage Diode Cable |
|
- |
