Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4359409 Assembly, Latch Appelez-nous -
2 4358863 Harness, Latch Appelez-nous -
3 4358480 Latch Board Appelez-nous -
4 4392027 Micro Switch   (Replaces: 4158940) Special Order $ 138.41

5 4358481 Latch Board Appelez-nous -
6 4392027 Micro Switch   (Replaces: 4158841) Special Order $ 138.41

7 4358482 Lever, Switch Appelez-nous -
8 4392027 Micro Switch   (Replaces: 4358269) Special Order $ 138.41

9 4358483 Rod, Release Appelez-nous -
10 4358357 Screw Appelez-nous -
11 4358484 Screw Appelez-nous -
12 4358271 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

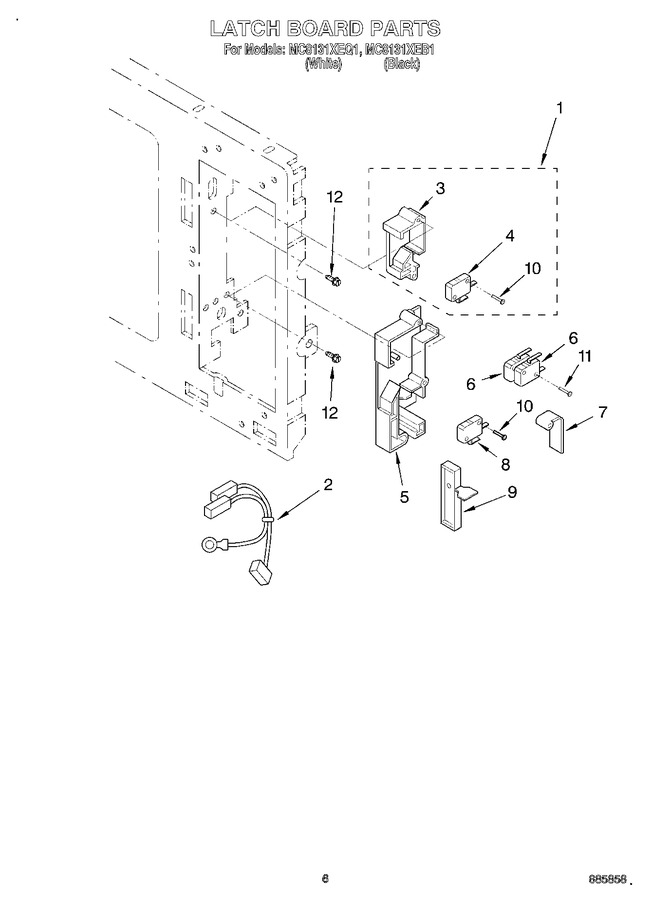

Diagram for MC8131XEB1
