SELECT A DIAGRAM

01 - Convection Oven


02 - Oven Interior


03 - Oven Cavity


04 - Base Plate


05 - Latch Board


06 - Control Panel


07 - Door, Lit/optional

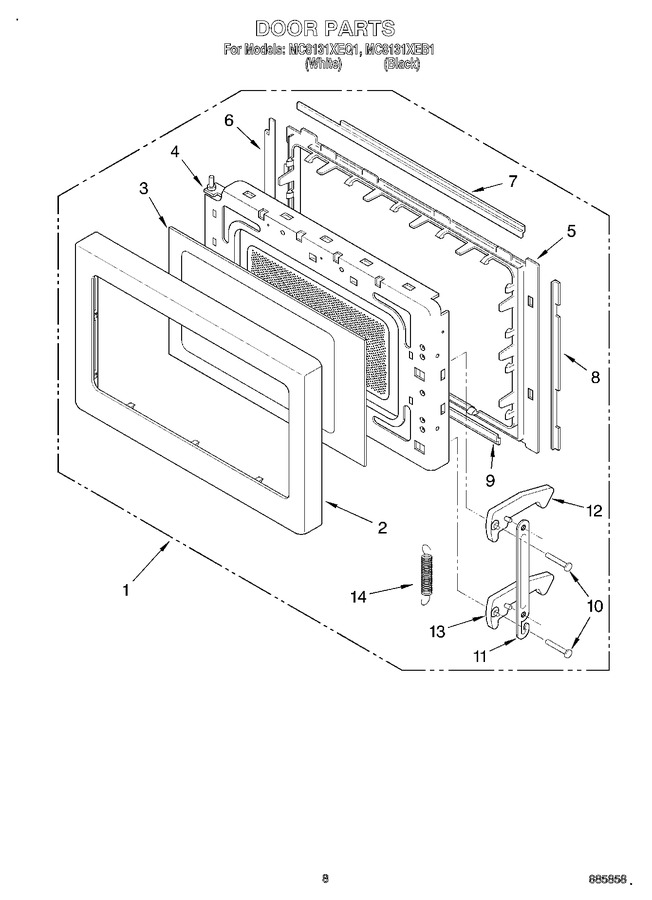

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4359358		Door Assembly (black Model)		Appelez-nous	-
1	4359357		Door Assembly (white Model)		Appelez-nous	-
2	4359360		Panel, Door (black Model)		Appelez-nous	-
2	4359359		Panel, Door (white Model)		Appelez-nous	-
3	4359380		Glass (white Model)		Appelez-nous	-
3	4359379		Glass (black Model)		Appelez-nous	-
4	4359381		Assembly, Door Frame		Appelez-nous	-
5	4359382		Choke Cover		Appelez-nous	-
6	4359383		Side Trim, Door		Appelez-nous	-
7	4359384		Top Trim, Door		Appelez-nous	-
8	4359385		Side Trim, Door		Appelez-nous	-
9	4359386		Bottom Trim, Door		Appelez-nous	-
10	4359387		Pin, Latch		Appelez-nous	-
11	4359388		Lever, Latch		Appelez-nous	-
12	4359389		Latch		Appelez-nous	-
13	4359390		Latch		Appelez-nous	-
14	4378056		27`` Built-in Kit Mk8137xab (black)		Appelez-nous	-
14	4359391		Spring		Appelez-nous	-
14	4378055		27`` Built-in Kit Mk8137xaq (white)		Appelez-nous	-
14	4378058		30`` Built-in Kit Mk8130xab (black)		Appelez-nous	-
14	4378057		30`` Built-in Kit Mk8130xaq (white)		Appelez-nous	-
	LIT4359327		Use & Care Guide		Appelez-nous	-
	LIT4358415		Cookbook		Appelez-nous	-
	LIT4359328		Cooking Guide		Appelez-nous	-
	LIT4359329		Tech Sheet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
