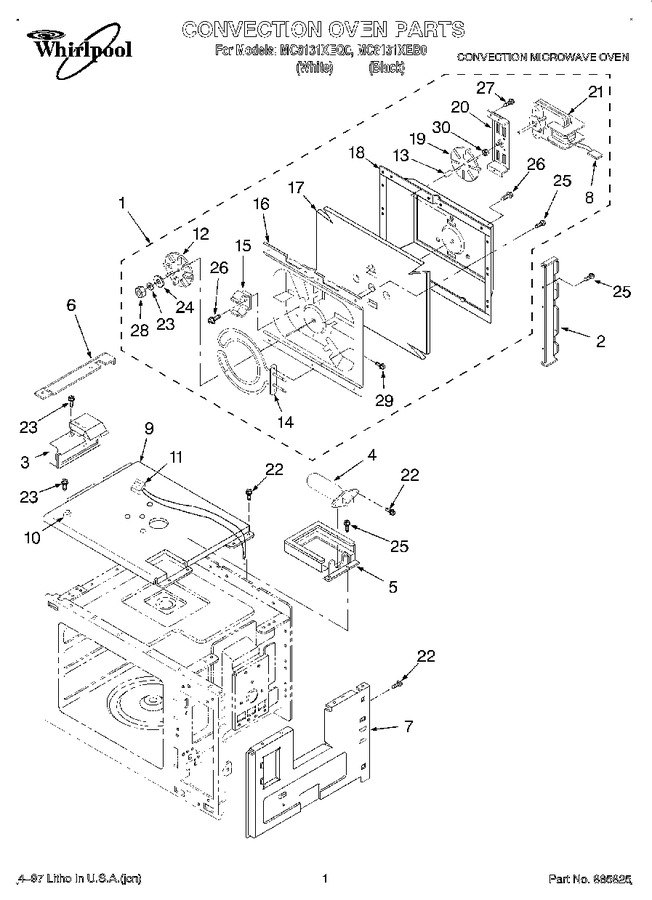

01 - Convection Oven


02 - Oven Interior


03 - Oven Cavity


04 - Base Plate


05 - Latch Board


06 - Control Panel


07 - Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4359406		Chamber Assembly		Appelez-nous	-
2	4358454		Bracket, Support		Appelez-nous	-
3	4358455		Air Tunnel		Appelez-nous	-
4	4358470		Lamp		Appelez-nous	-
5	4358471		Bracket, Lamp		Appelez-nous	-
6	4358472		Cover		Appelez-nous	-
7	4358452		Insulator		Appelez-nous	-
8	4358453		Motor Wire		Appelez-nous	-
9	4358456		Insulator		Appelez-nous	-
10	4358457		Thermostat		Appelez-nous	-
11	4359407		Thermistor		Appelez-nous	-
12	4359408		Fan		Appelez-nous	-
13	4358460		Bushing		Appelez-nous	-
14	4358461		Convection Element		Appelez-nous	-
15	4358462		Clip, Convection Element		Appelez-nous	-
16	4358463		Duct, Magnatron		Appelez-nous	-
17	4358464		Insulation		Appelez-nous	-
18	4358465		Insulation Shield, Back		Appelez-nous	-
19	4358466		Fan Blade		Appelez-nous	-
20	4358467		Bracket, Convection Motor		Appelez-nous	-
21	4358468		Convection Motor		Appelez-nous	-
22	4358192		Screw		Appelez-nous	-
23	4358450		Screw		Appelez-nous	-
24	4358478		Washer		Appelez-nous	-
25	W11245710		Screw   (Replaces: 4358362)			Immediately	$ 12.65
26	WP3196557		Screw   (Replaces: 4358045)			Immediately	$ 7.16
27	4358473		Screw		Appelez-nous	-
28	4358476		Nut		Appelez-nous	-
29	4344826		Screw   (Replaces: 4358474)				$ 14.31
30	4358475		Nut		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
