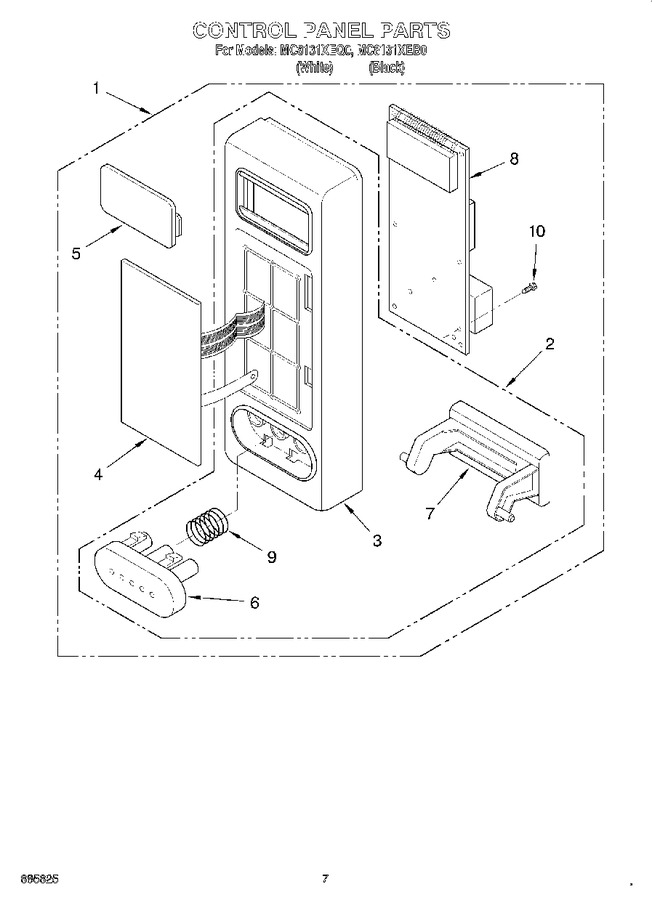

06 - Control Panel
07 - Door, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4359346 | Assembly, Control (non-serviceable) (black Model) |
|
- | |||||
| 1 | 4359345 | Assembly, Control (non-serviceable) (white Model) |
|
- | |||||
| 2 | 4359393 | Control Sub Assembly (white Model) |
|
- | |||||
| 2 | 4359392 | Control Sub Assembly (black Model) |
|
- | |||||
| 3 | 4359355 | Control Panel (white Model) |
|
- | |||||
| 3 | 4359356 | Control Panel (black Model) |
|
- | |||||
| 4 | 4359351 | Membrane (white Model) |
|
- | |||||
| 4 | 4359353 | Membrane (black Model) |
|
- | |||||
| 5 | 4359347 | Window |
|
- | |||||
| 6 | 4359350 | Button (black Model) |
|
- | |||||
| 6 | 4359349 | Button (white Model) |
|
- | |||||
| 7 | 4359348 | Lever, Release |
|
- | |||||
| 8 | 4359340 | Pcb Sub Assembly |
|
- | |||||
| 9 | 4158809 | Spring |
|
- | |||||
| 10 | 4358188 | Screw Black Model (non-serviceable) |
|
- |
