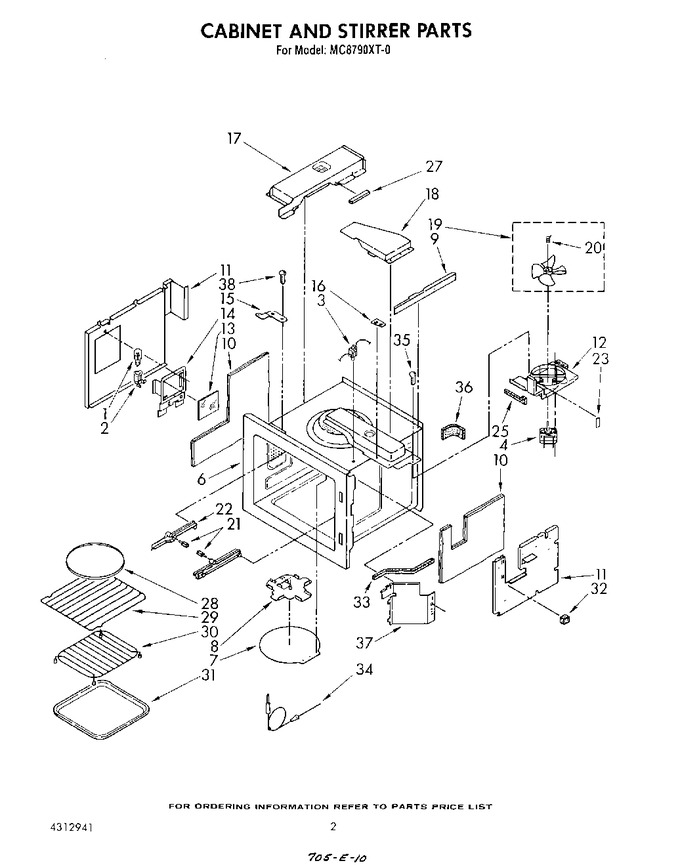

02 - Cabinet And Stirrer , Literature An
03 - Magnetron And Airflow
04 - Cabinet
05 - Door And Latch
06 - Control Panel
07 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPA3073101 | Light Bulb (Replaces: 4312826) |
|
Immediately | $ 10.90 | ||||
| 2 | 4174730 | Light Socket |
|
- | |||||
| 3 | 4312816 | Jack Assy. |
|
- | |||||
| 4 | 4312829 | Motor, Fan Cooling |
|
- | |||||
| 7 | 4312856 | Stirrer Cover Assy. |
|
- | |||||
| 8 | 4312857 | Stirrer Fan Assy. |
|
- | |||||
| 9 | 4312858 | Support, Chassis |
|
- | |||||
| 10 | 4312859 | Insulation (l.h.) |
|
- | |||||
| 10 | 4312886 | Insulation (r.h.) |
|
- | |||||
| 11 | 4312883 | Panel, Oven Cavity (r.h.) |
|
- | |||||
| 11 | 4312860 | Panel, Oven Cavity (l.h.) |
|
- | |||||
| 12 | 4312861 | Stirrer Fan Duct |
|
- | |||||
| 13 | 4312862 | Glass, Oven Light |
|
- | |||||
| 14 | 4312863 | Mounting Plate, Oven Light |
|
- | |||||
| 15 | 4312864 | Upper Hinge |
|
- | |||||
| 16 | 4312865 | Divider Plate |
|
- | |||||
| 17 | 4312937 | Exhaust Duct Assy. |
|
- | |||||
| 18 | 4312869 | Cooling Duct Magnetron |
|
- | |||||
| 19 | 4312871 | Fan Blade Assy. |
|
- | |||||
| 20 | 4312872 | Clip, Retainer |
|
- | |||||
| 21 | 4312874 | Plastic Screw |
|
- | |||||
| 22 | 4312875 | Rack Support (l.h.) |
|
- | |||||
| 22 | 4312876 | Rack Support (r.h.) |
|
- | |||||
| 23 | 4312892 | Block, Foam |
|
- | |||||
| 25 | 4312888 | Block, Foam |
|
- | |||||
| 27 | 4312895 | Block, Foam |
|
- | |||||
| 28 | 4312905 | Cookie Sheet |
|
- | |||||
| 29 | 4312906 | Rack (upper) |
|
- | |||||
| 30 | 4312907 | Rack (lower) |
|
- | |||||
| 31 | 4312908 | Tray, Cooking |
|
- | |||||
| 32 | 4312909 | Block, Foam |
|
- | |||||
| 33 | 4312894 | Block, Foam |
|
- | |||||
| 34 | 4312815 | Temperature Probe Assy. |
|
- | |||||
| 35 | 4312916 | Screw |
|
- | |||||
| 36 | 4312889 | Block, Foam |
|
- | |||||
| 37 | 4312870 | Magnetron Duct Assy. |
|
- | |||||
| 38 | 4314918 | Screw (2) |
|
- | |||||
| LIT4312800 | Guide, Use & Care |
|
- | ||||||
| 261900 | Citrine White (6 Oz.) |
|
$ 51.34 | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242829 | Wire (12 Ga. 150 C Red) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 832889 | Cord Brown (1/2 Oz.) |
|
$ 26.23 | ||||||
| WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | |||||
| 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | ||||||
| 830881 | Cord Brown (13 Oz.) |
|
- | ||||||
| WP261869 | Citrine White (1/2 Oz.) (Replaces: 261869) |
|
$ 23.85 | ||||||
| LIT4312941 | List, Repair Parts |
|
- | ||||||
| LIT4312804 | Cookbook |
|
- | ||||||
| LIT4312809 | Tech Sheet |
|
- | ||||||
| 242832 | Wire (14 Ga. 200 C Yellow) |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242826 | Wire (14 Ga. 150 C White) |
|
- |
