Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4312834 Damper Assy. Appelez-nous -
2 4392027 Switch, Door (2)   (Replaces: 4312823) Special Order $ 138.41

3 4312827 Motor, Damper Appelez-nous -
4 4312833 Magnetron Appelez-nous -
5 WP3188286 Thermal Protector (2)   (Replaces: 4312830) Special Order $ 66.13

6 4312825 Heating Element Appelez-nous -
7 4312824 Thermistor Appelez-nous -
8 4312828 Motor, Fan (convection) Appelez-nous -
9 4312835 Heater Duct Assy. Appelez-nous -
10 4312836 Fan Blade (convection) Appelez-nous -
11 4312837 Fan Blade (reflection) Appelez-nous -
12 4312873 Plate, Motor Mounting Appelez-nous -
13 4312880 Clip, Element (2) Appelez-nous -
14 4312881 Collar Appelez-nous -
15 4312882 Plate, Protector Appelez-nous -
16 4312884 Plate, Thermal Protector Appelez-nous -
17 4312885 Insulation Appelez-nous -
18 4312887 Cover, Thermal Protector Appelez-nous -
19 4312890 Foam Block Appelez-nous -
20 4312919 Screw (2) Appelez-nous -
21 4312916 Screw (4) Appelez-nous -
22 4312893 Foam Block Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

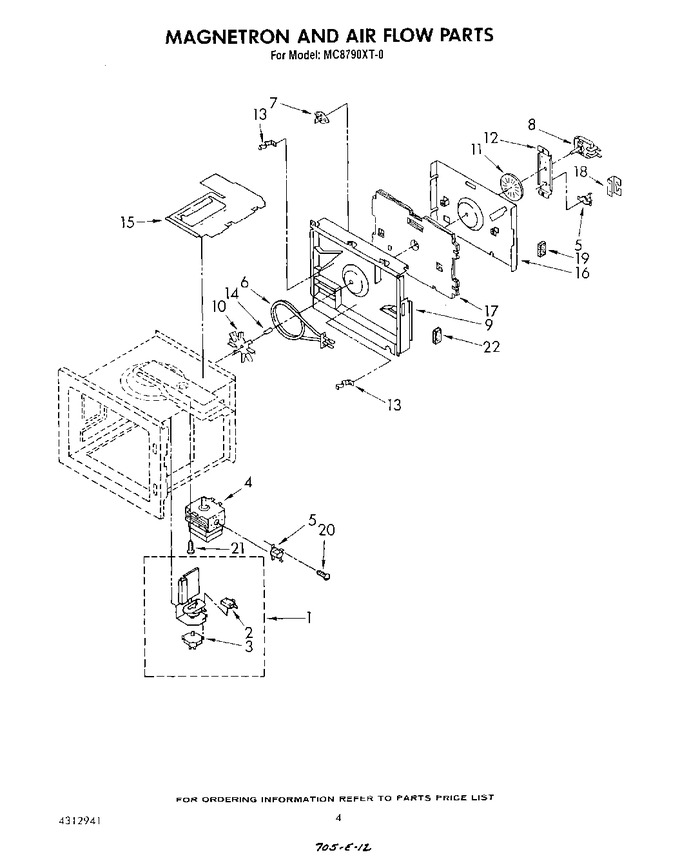

Diagram for MC8790XT0
