02 - Cabinet

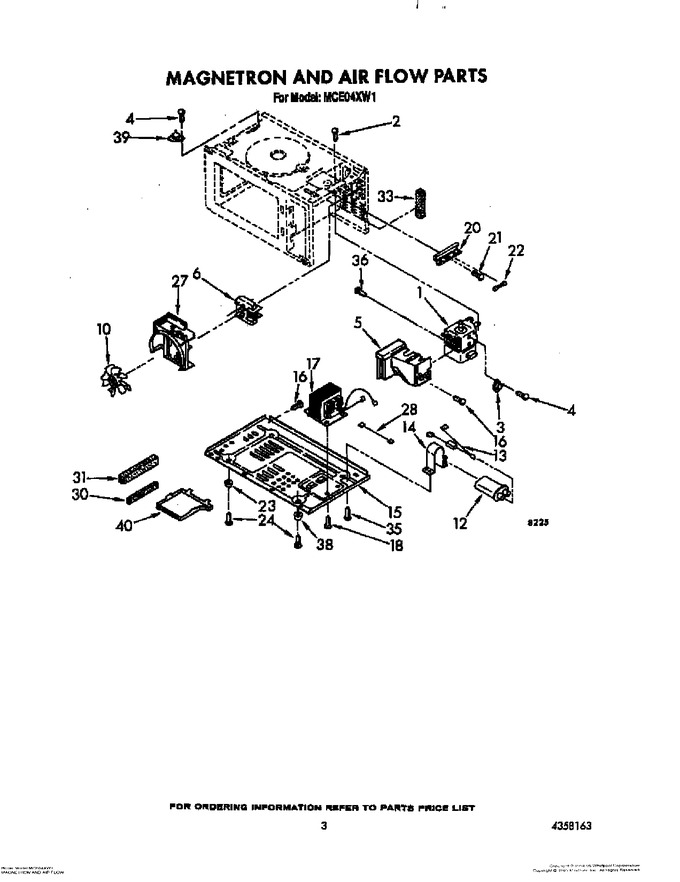

03 - Magnetron And Air Flow


04 - Oven Door, Latch And Panel


05 - Wiring Harness, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4158755		Magnetron		Appelez-nous	-
2	4158075		Screw, 4 X 8 Mm		Appelez-nous	-
3	4358117		Thermostat, Magnetron		Appelez-nous	-
4	4158082		Screw, 3 X 8 Mm		Appelez-nous	-
5	4158759		Duct, Air		Appelez-nous	-
6	4158756		Motor, Fan		Appelez-nous	-
10	4158758		Fan		Appelez-nous	-
12	4158752		Capacitor		Appelez-nous	-
13	4158298		Diode Cable		Appelez-nous	-
14	4158753		Bracket, Capacitor		Appelez-nous	-
15	4158580		Plate, Base		Appelez-nous	-
16	4158071		Screw, 4 X 8 Mm		Appelez-nous	-
17	4158749		Transformer		Appelez-nous	-
18	4158103		Screw, 5 X 12mm		Appelez-nous	-
20	4158761		Holder, Fuse		Appelez-nous	-
21	4158072		Screw, 4 X 10 Mm		Appelez-nous	-
22	4158378		Fuse		Appelez-nous	-
23	4158764		Foot, Left (2)		Appelez-nous	-
24	4158472		Screw		Appelez-nous	-
27	4158757		Cover, Fan		Appelez-nous	-
28	4158751		Lead, High Voltage		Appelez-nous	-
30	4158039		Seal, Foam		Appelez-nous	-
31	4158041		Seal, Foam		Appelez-nous	-
33	4158119		Seal, Foam		Appelez-nous	-
35	4158073		Screw, 4 X 8 Mm		Appelez-nous	-
36	4158074		Screw, 4 X 6 Mm		Appelez-nous	-
38	4158763		Foot, Right (2)		Appelez-nous	-
39	4158765		Thermostat		Appelez-nous	-
40	4158766		Bracket, Base		Appelez-nous	-
