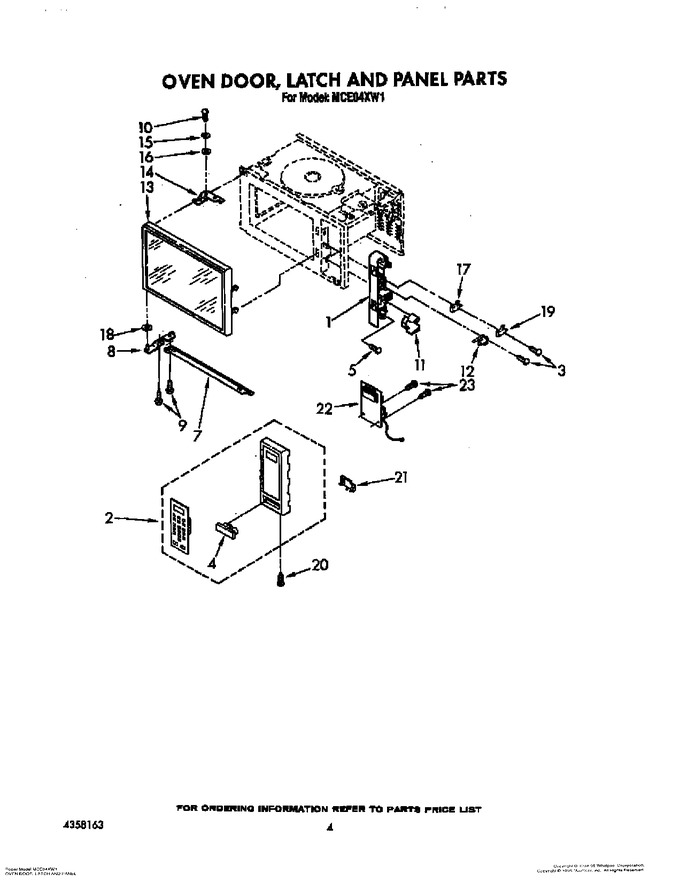

04 - Oven Door, Latch And Panel


05 - Wiring Harness, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4158767		Latch Board		Appelez-nous	-
2	4158983		Control Panel, Complete		Appelez-nous	-
3	4158078		Screw, 3 X 20mm		Appelez-nous	-
4	4158776		Button, Push To Start		Appelez-nous	-
5	4358051		Screw		Appelez-nous	-
7	4358114		Pin, Protector		Appelez-nous	-
8	4158740		Hinge Plate, Lower		Appelez-nous	-
9	WP3400094		Screw   (Replaces: 4158747)				$ 7.14
10	4158080		Screw, 5 X 16mm		Appelez-nous	-
11	4158738		Lever Switch		Appelez-nous	-
12	4392027		Switch, Secondary   (Replaces: 4158952)				$ 138.41
13	4158774		Door, Complete		Appelez-nous	-
14	4158739		Hinge Plate, Upper		Appelez-nous	-
15	4158086		Washer		Appelez-nous	-
16	4339331		Washer		Appelez-nous	-
17	4392027		Switch, Primary   (Replaces: 4158769)				$ 138.41
18	4158117		Washer		Appelez-nous	-
19	4392027		Switch, Monitor   (Replaces: 4158771)				$ 138.41
20	4158076		Screw		Appelez-nous	-
21	4158777		Lever, Release		Appelez-nous	-
22	4358162		Microcomputer		Appelez-nous	-
23	4158190		Screw		Appelez-nous	-
