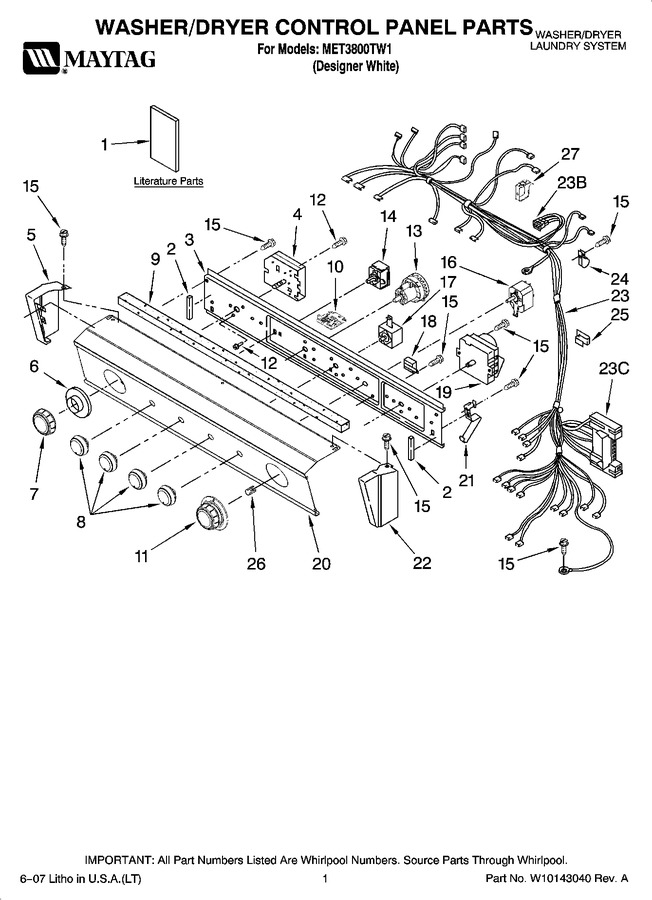

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
W10118289 |
|
Installation Instructions |
|
Appelez-nous
|
- |
|
|
|
| 1 |
W10117755 |
|
Sheet, Cycle Feature |
|
Appelez-nous
|
- |
|
|
|
| 1 |
W10114285 |
|
Wire Diagram |
|
Appelez-nous
|
- |
|
|
|
| 1 |
W10118320 |
|
Energy Guide |
|
Appelez-nous
|
- |
|
|
|
| 1 |
W10117754 |
|
Use & Care Guide |
|
Appelez-nous
|
- |
|
|
|
| 2 |
3390688 |
|
Spacer- Foam Pad (2) |
|
|
|
$ 8.13 |
|
|
| 3 |
W10732070 |
|
Bracket, Control (includes Illus. 2) (Replaces: 8528583) |
|
|
|
$ 158.08 |
|
|
| 4 |
W10124193 |
|
Timer, Washer |
|
|
|
$ 188.62 |
|
|
| 5 |
3389464 |
|
End Cap (lh) |
|
|
|
$ 26.75 |
|
|
| 6 |
W10112571 |
 |
Dial, (washer) |
|
|
|
$ 43.66 |
|
|
| 7 |
WPW10110033 |
 |
Knob, Timer (washer) (Replaces: W10110033) |
|
|
|
$ 57.49 |
|
|
| 8 |
WPW10110035 |
 |
Knob, Control (4) (Replaces: W10112572) |
|
|
|
$ 52.27 |
|
|
| 9 |
8521965 |
|
Gasket, Console |
|
Appelez-nous
|
- |
|
|
|
| 10 |
WPW10476828 |
 |
Control, C-version (Replaces: 8558178) |
|
|
Immediately |
$ 282.80 |
|
|
| 11 |
WPW10110036 |
 |
Knob, Timer (dryer) (Replaces: W10112573) |
|
|
|
$ 56.11 |
|
|
| 12 |
W10915367 |
|
Screw, 10-32 X 5/16 (Replaces: 3400808) |
|
Appelez-nous
|
- |
|
|
|
| 13 |
W10112533 |
|
Switch, Pressure |
|
Appelez-nous
|
- |
|
|
|
| 14 |
W11103599 |
 |
Switch, Temperature (Replaces: W10114118) |
|
|
Immediately |
$ 181.62 |
|
|
| 15 |
WP90767 |
 |
Screw, 8-18 X 3/8 (Replaces: 90767) |
|
|
Immediately |
$ 7.04 |
|
|
| 16 |
WPW10117655 |
 |
Switch, Push-to-start (Replaces: W10117655) |
|
|
Immediately |
$ 77.04 |
|
|
| 17 |
WP3405156 |
 |
Switch, Rotary (Replaces: 3405156) |
|
|
|
$ 130.96 |
|
|
| 18 |
WP694419 |
 |
Buzzer, Mini (Replaces: 694419) |
|
|
|
$ 114.90 |
|
|
| 19 |
WPW10113816 |
 |
Timer, Dryer (Replaces: W10113816) |
|
|
|
$ 335.65 |
|
|
| 20 |
W10124093 |
|
Panel, Control |
|
|
|
$ 176.81 |
|
|
| 21 |
3389453 |
|
Bracket, Hinge (2) |
|
|
|
$ 78.06 |
|
|
| 22 |
3389456 |
|
End Cap (rh) |
|
|
|
$ 40.11 |
|
|
| 23 |
W10139465 |
|
Harness - Dryer |
|
Appelez-nous
|
- |
|
|
|
| 24 |
7111P002-60 |
|
Clamp, Harness (Replaces: 3390604) |
|
Appelez-nous
|
- |
|
|
|
| 25 |
W10134185 |
|
Clip, Harness (2) (Replaces: 3390422) |
|
Appelez-nous
|
- |
|
|
|
| 26 |
WP8536939 |
 |
Spring Clip Knob (Replaces: 8536939) |
|
|
Immediately |
$ 7.03 |
|
|
| 27 |
W10134185 |
|
Clip, Harness (2) |
|
Appelez-nous
|
- |
|
|
|
| 23B |
2154470 |
|
Receptacle, |
|
Appelez-nous
|
- |
|
|
|
| 23C |
3395683 |
 |
Connector (motor-dryer) |
|
|
Immediately |
$ 46.67 |
|
|
