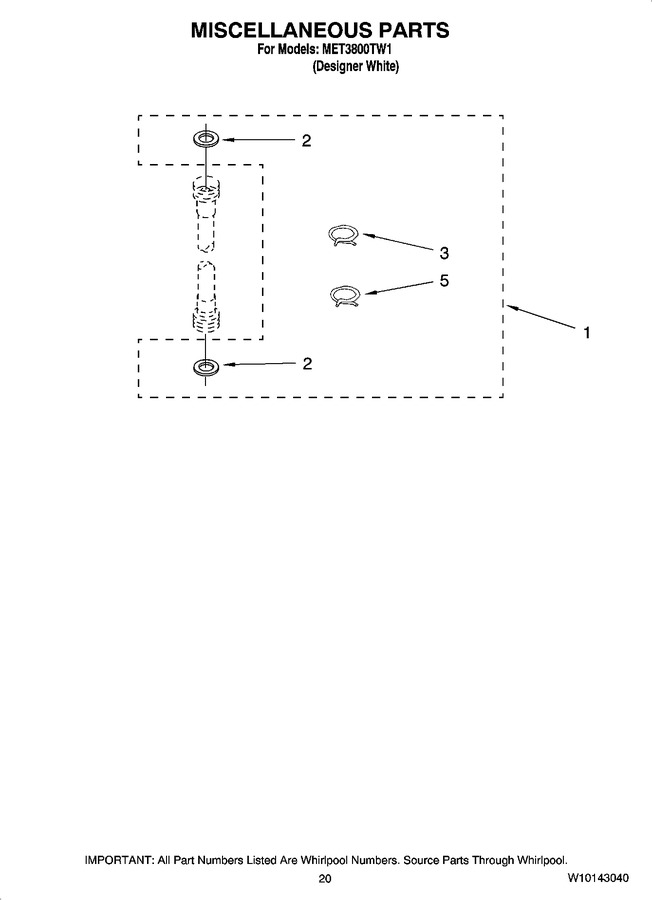

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10118295		Miscellaneous Parts Bag		Appelez-nous	-
2	WP16123		Washer, Inlet Hose   (Replaces: 16123)				$ 6.93
3	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
5	WP3357331		Clamp, Hose (upper Drain)   (Replaces: 3357331)				$ 6.80
	279823		Side Exhaust Kit				$ 136.75
	WP285195		Sealer, Gasket (20 Fl. Oz.) (6 Ml)   (Replaces: 285195)				$ 93.95
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
	350572		Oil, Gearcase (16 Oz.)			Immediately	$ 82.45
	285208		Lubricant (use Only In Brake Shoe Assembly On Roller An D Pin)				$ 41.86
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 23.81
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
