02 - Control Panel


03 - Body Parts


04 - Door Parts

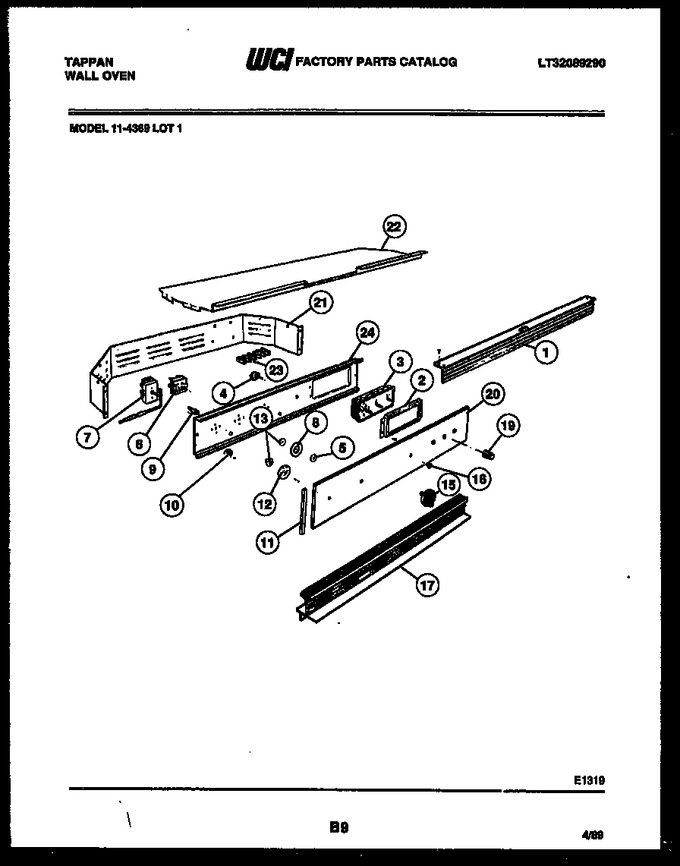

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3203938		Trim-top Vent		Appelez-nous	-
2	3202088		Bracket-clock		Appelez-nous	-
3	3203878		Clock		Appelez-nous	-
4	3202196		Switch-light		Appelez-nous	-
5	3203884		Spacer - Dial Sec.		Appelez-nous	-
6	3203879		Switch-select		Appelez-nous	-
7	3203880		Thermostat		Appelez-nous	-
8	3203886		Dial - Sel Switch		Appelez-nous	-
9	3202194		Light, Indicator, Oven		Appelez-nous	-
10	3202093		Bumper (6)		Appelez-nous	-
11	3202094		Trim-cntrl Pnl Gl (2)		Appelez-nous	-
12	3203885		Dial - Therm		Appelez-nous	-
13	3203712		Spacer - Dial (2)		Appelez-nous	-
15	3202178		Knob (2)		Appelez-nous	-
16	3016305		Bezel-switch		Appelez-nous	-
17	3202101		Trim-center Vent		Appelez-nous	-
19	3202285		Knob-clock (3)		Appelez-nous	-
20	3203937		Glass-control Panel		Appelez-nous	-
21	3016250		Housing, Control		Appelez-nous	-
22	3016309		Cover-control Housing		Appelez-nous	-
23	3051098		Block Terminal		Appelez-nous	-
24	3202199		Plate-instr Mtg		Appelez-nous	-
*23060	3203711		Sleeve - Ind Light		Appelez-nous	-
