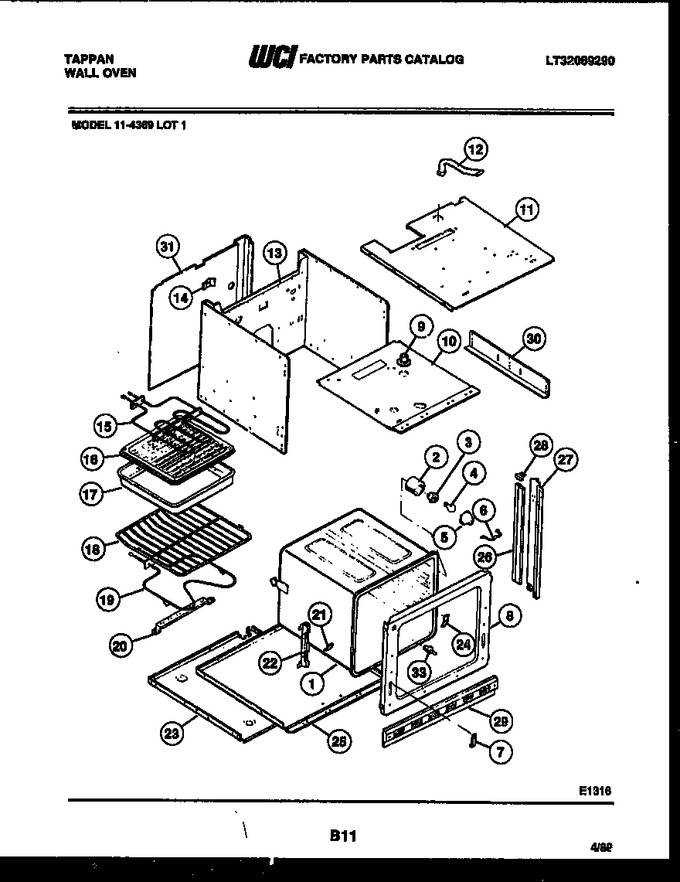

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3016269		Liner-oven		Appelez-nous	-
2	3016243		Tube - Oven Light		Appelez-nous	-
3	08011085		Receptacle		Appelez-nous	-
4	3013071		Bulb		Appelez-nous	-
5	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 15.61
6	3016244		Retainer-lens		Appelez-nous	-
7	3019063		Retainer - Door (2)		Appelez-nous	-
8	3202083		Frame-front		Appelez-nous	-
9	3051742		Vent Tube Assy		Appelez-nous	-
10	3202304		Shield-wool		Appelez-nous	-
11	3202306		Wrapper, Top		Appelez-nous	-
12	3016301		Duct - Vent Tube		Appelez-nous	-
13	3016275		Wrapper		Appelez-nous	-
14	3016281		Spring, Oven (2)		Appelez-nous	-
15	3016247		Element-broil		Appelez-nous	-
16	3019066		Insert-broiler Pan		Appelez-nous	-
17	3018808		Pan-broiler		Appelez-nous	-
18	3016315		Rack-regular (2)		Appelez-nous	-
19	3016246		Element-bake		Appelez-nous	-
20	3016248		Support-broil Elmnt		Appelez-nous	-
21	3201632		Spacer, Oven (2)		Appelez-nous	-
22	3201631		Hinge - Assy (2)				$ 58.22
23	3016277		Wrapper, Base		Appelez-nous	-
24	3202082		Cover Seam		Appelez-nous	-
25	3016273		Shield, Insulation		Appelez-nous	-
26	3016279		Trim, Inner, Rh		Appelez-nous	-
27	3203745		Trim-side Outer (2)		Appelez-nous	-
28	3202179		Trim-cap Rh		Appelez-nous	-
29	3016283		Trim-base		Appelez-nous	-
30	3016278		Support - Height Adj		Appelez-nous	-
31	3016314		Cover, Wire		Appelez-nous	-
33	3051531		Switch-oven Light		Appelez-nous	-
*23061	3016319		Insulation-back		Appelez-nous	-
*23061	3016323		Insulation-wrap		Appelez-nous	-
*23061	3131060		Clip-capillary (4)		Appelez-nous	-
26A	3016280		Trim, Inner, Lh		Appelez-nous	-
28A	3202180		Trim-cap Lh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
