01 - Cover
02 - Cabinet, Front, Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

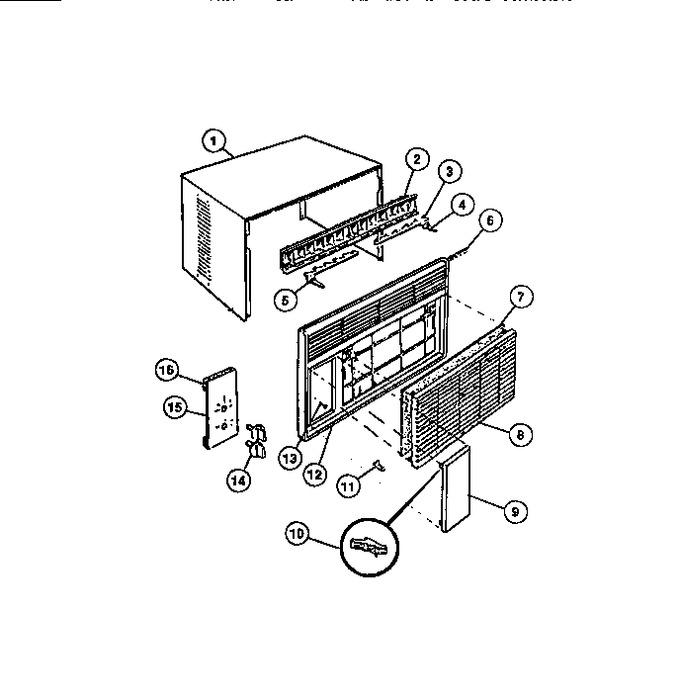

| 1 | 3016092 | Wrapper |
|
- | |||||
| 2 | 5303002457 | Louver & Link Assembly |
|
- | |||||
| 3 | 5303002160 | Link-louver Rh |
|
- | |||||
| 4 | 5303001840 | Clip, Link Detent |
|
- | |||||
| 5 | 5303002165 | Link-louver Lh |
|
- | |||||
| 6 | 3016094 | Seal-mullion |
|
- | |||||
| 7 | 5303016095 | Filter Air |
|
- | |||||
| 8 | 3016096 | Panel-front |
|
- | |||||
| 9 | 5303201354 | Door Front |
|
- | |||||
| 10 | 5303017980 | Hinge |
|
- | |||||
| 11 | 5303001784 | Clip-front To Base |
|
- | |||||
| 12 | 3016097 | Front |
|
- | |||||
| 13 | 5308008175 | Screw-front |
|
- | |||||
| 14 | 5300331902 | Knob Control |
|
- | |||||
| 15 | 3016098 | Plate-dial |
|
- | |||||
| 16 | 5303001861 | Seal-dial Plate |
|
- |
