01 - Cover
02 - Cabinet, Front, Wrapper
03 - Control Parts
04 - Air Handling Parts
05 - Compressor
06 - Window Mounting Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

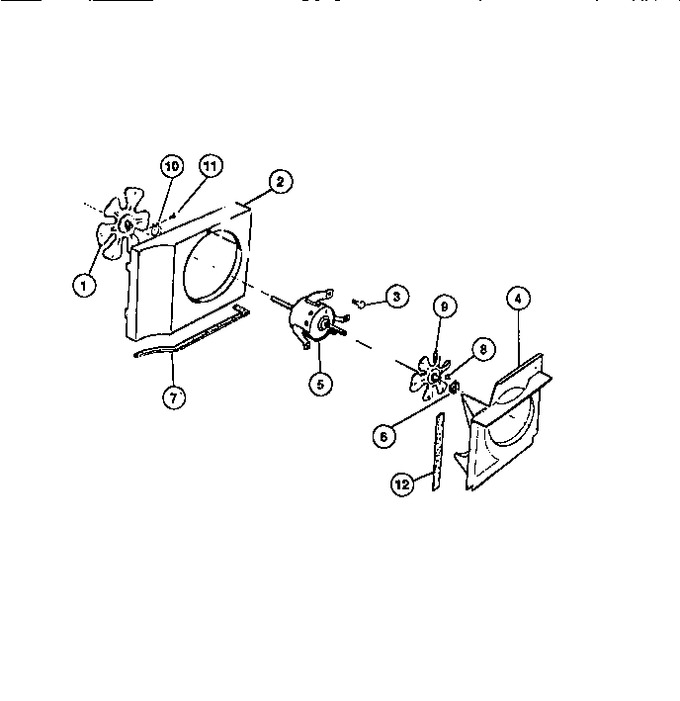

| 1 | 5303002074 | Blade, Condenser |
|
- | |||||
| 2 | 5303200891 | Shroud-condenser |
|
- | |||||
| 3 | 5303001817 | Screw, Fan Motor Mounting |
|
- | |||||
| 4 | 5303209086 | Shroud-evaporator |
|
- | |||||
| 5 | 5303209656 | Motor, Fan Flex Mounting, 3 Speed |
|
- | |||||
| 6 | 5308011040 | Clamp - Fan Blade |
|
- | |||||
| 7 | 3002573 | Seal, Condenser Bottom |
|
- | |||||
| 8 | 5308007473 | Screw-fan Blade |
|
- | |||||
| 9 | 5308010950 | Blade-fan Evaporator |
|
- | |||||
| 10 | 5308011040 | Clamp-fan |
|
- | |||||
| 11 | 5308007473 | Screw |
|
- | |||||
| 12 | 08007475 | Seal-evaporator Shroud |
|
- | |||||
| 12 | 3014763 | Clip-shroud (non-illustrated) |
|
- |
