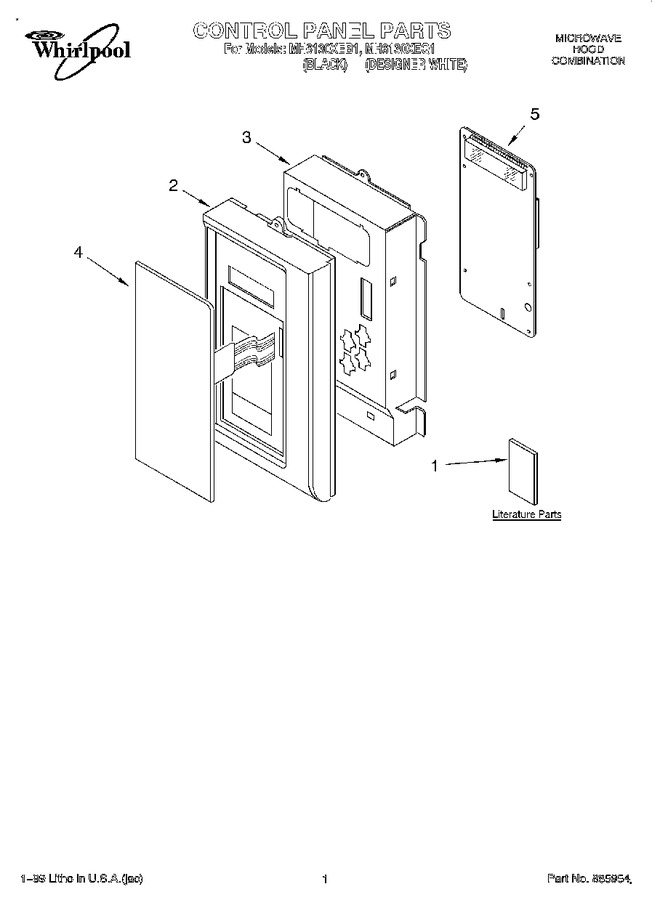

01 - Control Panel, Literature
02 - Door
03 - Cabinet
04 - Magnetron And Air Flow
05 - Interior
06 - Latch Board
07 - Ventilation
08 - Installation
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT4359626 | Literature Parts (guide, U & C) |
|
- | |||||
| 1 | LIT4359455 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT4359670 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT4359456 | Literature Parts (guide, Cooking) |
|
- | |||||
| 2 | 4359480 | Control Panel (black Model) |
|
- | |||||
| 2 | 4359479 | Control Panel (white Model) |
|
- | |||||
| 2 | 4358762 | Control Panel (screw) |
|
$ 7.10 | |||||
| 3 | 4359481 | Brack |
|
- | |||||
| 4 | 4359684 | Key Membrane (black Model) |
|
- | |||||
| 4 | 4359685 | Key Membrane (white Model) |
|
- | |||||
| 5 | 4359661 | Pcb Sub Assy. |
|
- | |||||
| 5 | 4358883 | Screw |
|
- |
