Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4359488 Outer Case (black Model) Appelez-nous -
1 4359487 Outer Case (white Model) Appelez-nous -
1 4358381 Outer Case (screw) Appelez-nous -
2 4358928 Mounting Bracket Appelez-nous -
2 4358192 Screw Appelez-nous -
4 4359490 Grille Vent (black Model) Appelez-nous -
4 4359489 Grille Vent (white Model) Appelez-nous -
4 4358762 Grille Vent (screw) Special Order $ 7.10

5 4358759 Bracket, Front Appelez-nous -
5 4358192 Screw Appelez-nous -
6 4358816 Bracket, Grille Appelez-nous -
7 4359616 Cover, Power Cord Appelez-nous -
7 4358192 Screw Appelez-nous -
7 4359377 4358381 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

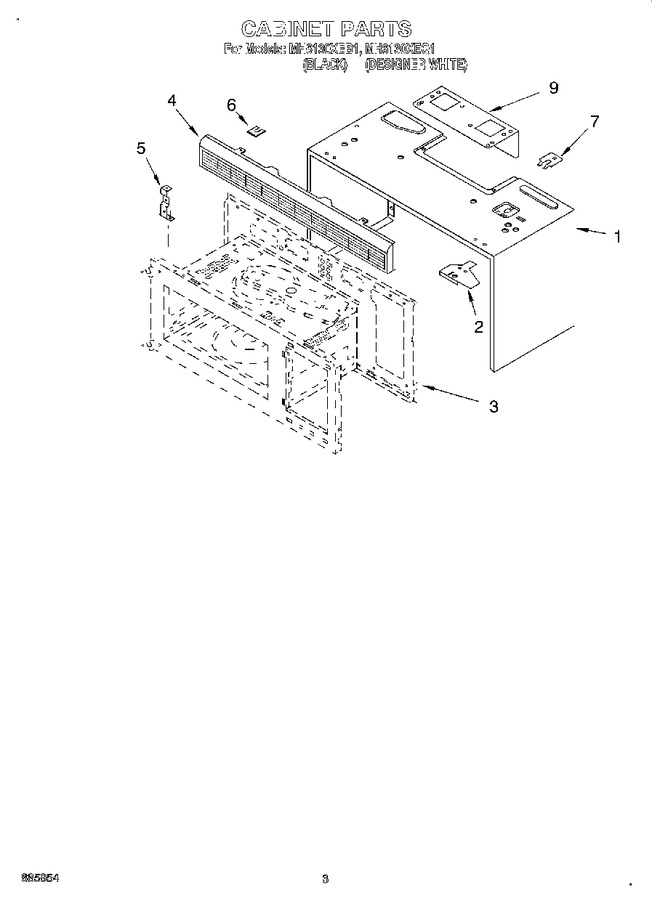

Diagram for MH6130XEB1
