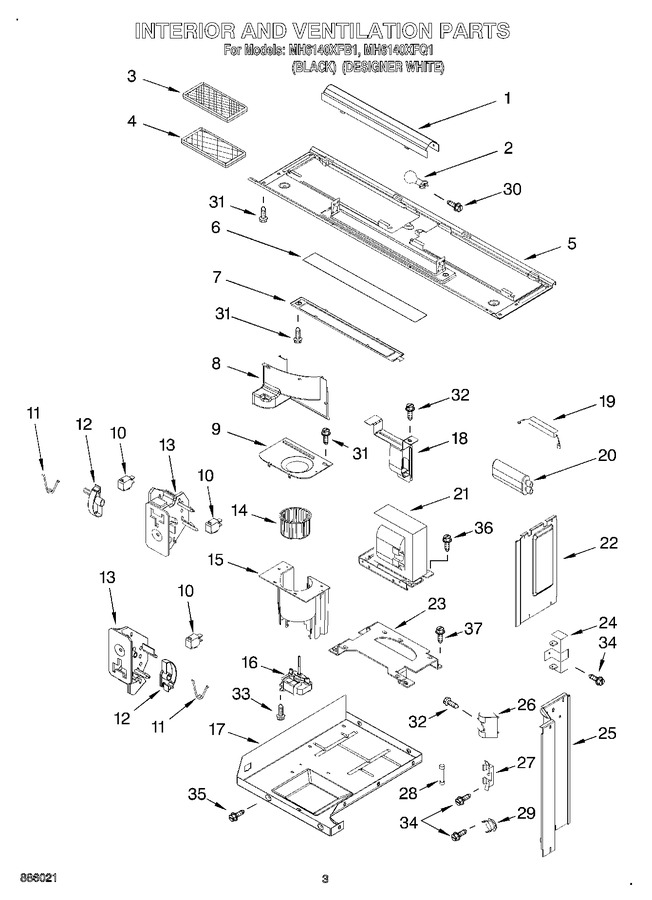

03 - Interior And Ventilation
04 - Air Flow
05 - Magnetron And Turntable
06 - Cabinet And Installation
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4393810 | Reflector, Lamp |
|
- | |||||
| 2 | 8206232A | Lamp (2) (Replaces: 4393681) |
|
Immediately | $ 6.61 | ||||
| 3 | 6800 | Filter, Charcoal (Replaces: 4393791) |
|
Immediately | $ 26.06 | ||||
| 4 | 6802A | Filter, Grease (Replaces: 4393790) |
|
Immediately | $ 28.96 | ||||
| 5 | 4393776 | Plate, Bottom |
|
- | |||||
| 6 | 4393693 | Glass, Lamp |
|
- | |||||
| 7 | 4393694 | Holder, Glass |
|
- | |||||
| 8 | 4393695 | Guide, Air (magnetron) |
|
- | |||||
| 9 | 4393696 | Cover, Fan |
|
- | |||||
| 10 | W10211972 | Switch, Micro (3) (Replaces: 4393697) |
|
Immediately | $ 47.16 | ||||
| 11 | 4393914 | Spring, Interlock (2) |
|
- | |||||
| 12 | 4393597 | Plate, Cam (2) |
|
- | |||||
| 13 | 8205572 | Support, Interlock (2) (Replaces: 4393595) |
|
$ 6.26 | |||||
| 14 | 4393698 | Wheel, Fan |
|
- | |||||
| 15 | 4393699 | Housing, Fan |
|
- | |||||
| 16 | 4393700 | Motor, Fan |
|
- | |||||
| 17 | 4393701 | Chassis |
|
- | |||||
| 18 | 4393702 | Holder, Capacitor |
|
- | |||||
| 19 | W11256462 | Rectifier, H.v. (Replaces: 4393600) |
|
Immediately | $ 29.88 | ||||
| 20 | W10850446 | Capacitor, H.v. (Replaces: 4393703) |
|
$ 167.89 | |||||
| 21 | 4393809 | Transformer, H.v. |
|
- | |||||
| 22 | 4393705 | Plate, Side (r) |
|
- | |||||
| 23 | 4393706 | Bracket, Transformer |
|
- | |||||
| 24 | 4393707 | Resistor, Ceramic |
|
- | |||||
| 25 | 4393708 | Plate, Side (l) |
|
- | |||||
| 26 | 4393709 | Capacitor |
|
$ 8.10 | |||||
| 27 | 4393538 | Holder, Fuse |
|
- | |||||
| 28 | W11707984 | Fuse (Replaces: 4393308) |
|
Immediately | $ 41.27 | ||||
| 29 | 4393710 | Thermostat Open Temp: 113~ Fahrenheit Close Temp: 140~ Fahrenheit |
|
- | |||||
| 30 | 4393827 | Screw |
|
- | |||||
| 31 | 4393835 | Screw |
|
$ 11.83 | |||||
| 32 | 4393829 | Screw |
|
- | |||||
| 33 | 4393833 | Screw |
|
$ 6.79 | |||||
| 34 | 4393346 | Screw |
|
- | |||||
| 35 | 4393448 | Screw |
|
- | |||||
| 36 | 4393836 | Screw |
|
- | |||||
| 37 | 4393839 | Screw |
|
- |
