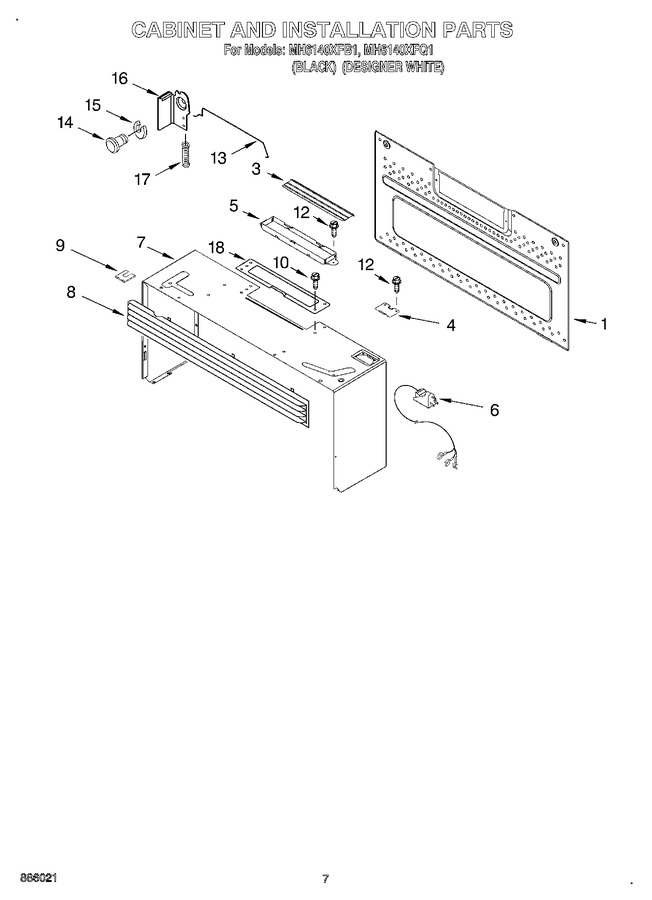

06 - Cabinet And Installation


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8206174		Plate, Mounting   (Replaces: 8169406)				$ 30.99
3	W10843943		Damper, Exhaust   (Replaces: 4393713)			Immediately	$ 65.74
4	4393714		Lid, Power Cord		Appelez-nous	-
5	W10843943		Exhaust, Damper   (Replaces: 4393715)			Immediately	$ 65.74
6	4393793		Cord, Power		Appelez-nous	-
7	8169661		Case, Outer (black)		Appelez-nous	-
7	8169660		Case, Outer (white)		Appelez-nous	-
8	8183851		Grille, Vent (black)   (Replaces: 8169333)			Immediately	$ 82.20
8	8183948		Grille, Vent (white)   (Replaces: 8169463)				$ 78.26
9	8206334		Grille, Holder   (Replaces: 4393795)				$ 6.47
10	WP4393834		Screw   (Replaces: 4393834)				$ 6.47
12	4393828		Screw		Appelez-nous	-
13	8169318		Rod		Appelez-nous	-
14	8169319		Latch, Pivot		Appelez-nous	-
15	8169320		E-ring		Appelez-nous	-
16	8169321		Catch		Appelez-nous	-
17	8169374		Spring		Appelez-nous	-
18	4378403		Filler Kit (almond)		Appelez-nous	-
18	8169768		Hardware, Installation		Appelez-nous	-
18	WP8169704		Screw, Top Mountng   (Replaces: 8169704)			Immediately	$ 10.07
18	8169298		Upper Template		Appelez-nous	-
18	8169487		Wall Template		Appelez-nous	-
18	4158311		Filler Kit (black)		Appelez-nous	-
18	4158439		Filler Kit (white)		Appelez-nous	-
18	8169697		Plate, Damper		Appelez-nous	-
