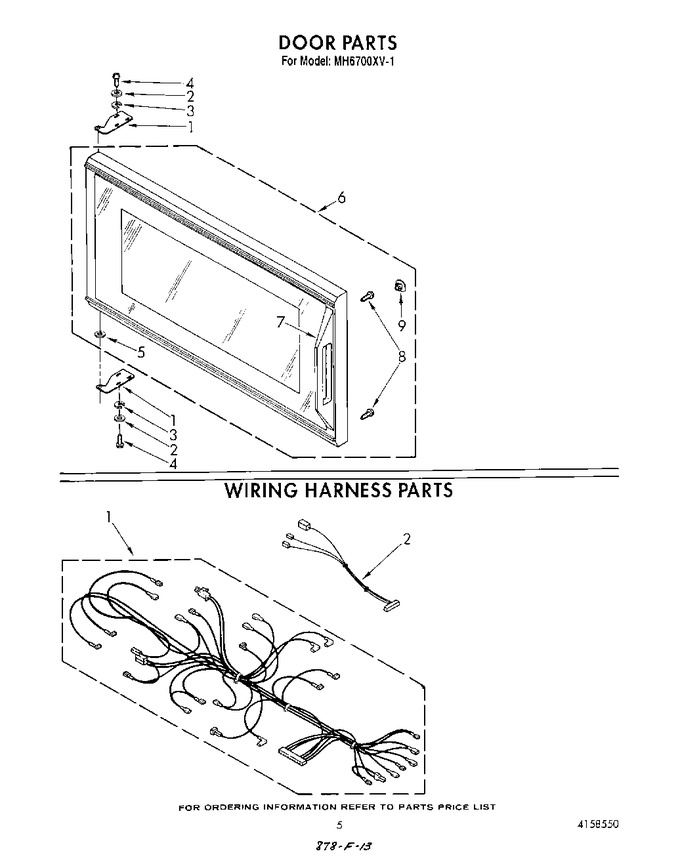

05 - Door , Wiring Harness , Lit/optional
06 - Control Panel
07 - Cavity And Stirrer
08 - Ventilation
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4158388 | Main Wiring Harness |
|
- | |||||
| 1 | 4158415 | Hinge Plate |
|
- | |||||
| 2 | 4158264 | Filler Kit |
|
- | |||||
| 2 | WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | ||||
| 2 | 4158491 | Installation Hardware |
|
- | |||||
| 2 | 4158087 | Plain Washer |
|
- | |||||
| 2 | 4158404 | Harness |
|
- | |||||
| 3 | 4158416 | Spring Washer |
|
- | |||||
| 4 | 4158417 | Tapping Screw |
|
- | |||||
| 5 | 4158117 | Hinge Washer |
|
- | |||||
| 6 | 4158444 | Complete Door |
|
- | |||||
| 7 | 4158511 | Handle |
|
- | |||||
| 8 | 4158072 | Tapping Screw (2) |
|
- | |||||
| 9 | 4158487 | Plug, Button |
|
- | |||||
| LIT4158266 | Guide, Use & Care |
|
- | ||||||
| LIT4158550 | List, Repair Parts |
|
- | ||||||
| LIT4158272 | Cookbook |
|
- | ||||||
| LIT4158274 | Tech Sheet |
|
- | ||||||
| LIT4158268 | Instructions, Installation |
|
- |
