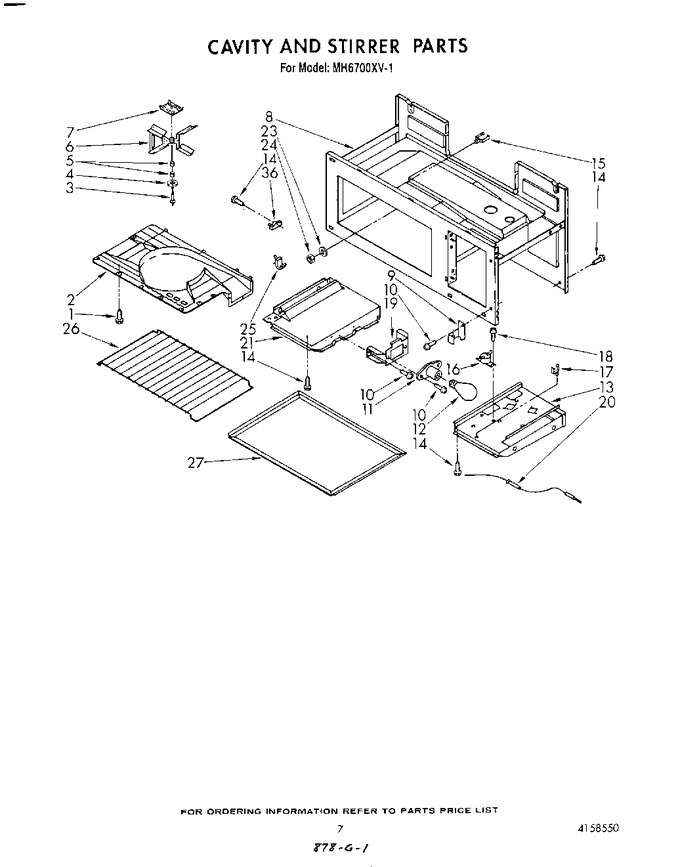

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4158357		Screw (9)		Appelez-nous	-
2	4158358		Stirrer Fan Cover		Appelez-nous	-
3	4158359		Stirrer Fan Shaft		Appelez-nous	-
4	4158252		Sliding Washer		Appelez-nous	-
5	4158360		Shaft Bushing		Appelez-nous	-
6	4158361		Stirrer Fan Assy.		Appelez-nous	-
7	4158362		Fan Shaft Holder		Appelez-nous	-
9	4158363		Cntl. Hinge Assy. (2)		Appelez-nous	-
10	4158076		Screw (8)		Appelez-nous	-
11	4158364		Lamp Holder (2)		Appelez-nous	-
12	8206232A		Cooktop Lamp (2)   (Replaces: 4158365)			Immediately	$ 6.61
13	4158366		Bottom Plate R.h.		Appelez-nous	-
14	4158072		Screw (7)		Appelez-nous	-
15	4158267		Wire Holder (4)		Appelez-nous	-
16	4158368		Base Thermostat		Appelez-nous	-
17	4158369		Wire Holder (2)		Appelez-nous	-
18	4158082		Screw (2)		Appelez-nous	-
19	4158370		Cooktop Lamp Bracket		Appelez-nous	-
20	4158371		Temp Probe		Appelez-nous	-
21	4158372		Bottom Plate L.h.		Appelez-nous	-
23	4158213		Washer		Appelez-nous	-
24	4158212		Nut		Appelez-nous	-
25	WP3149478		Support, Rack (4)   (Replaces: 4158209)				$ 8.64
26	4158373		Rack Assy.		Appelez-nous	-
27	4158374		Ceramic Plate Assy.		Appelez-nous	-
36	4158049		Fuse, Thermal		Appelez-nous	-
