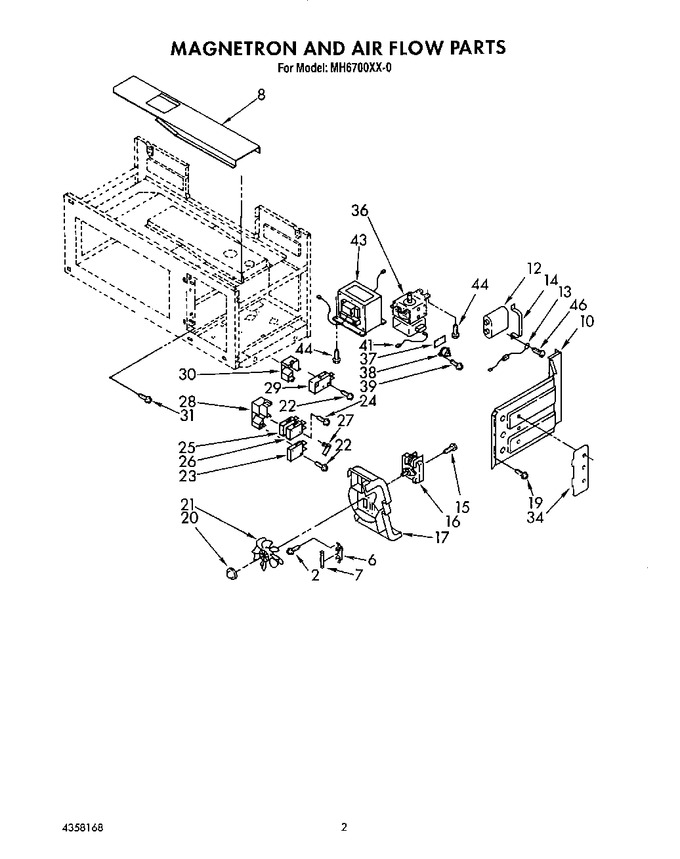

02 - Magnetron And Air Flow


03 - Installation Parts


04 - Cabinet


05 - Door, Wiring Harness, Lit/optional


06 - Control Panel


07 - Cavity And Stirrer


08 - Ventilation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	4358064		Screw		Appelez-nous	-
6	4158581		Holder, Fuse		Appelez-nous	-
7	4358177		Fuse		Appelez-nous	-
8	4358037		Motor Base		Appelez-nous	-
10	4358025		Air Guide (side)		Appelez-nous	-
12	4158507		Capacitor - H.v.		Appelez-nous	-
13	4158828		Diode Cable		Appelez-nous	-
14	4358062		Capacitor Bracket		Appelez-nous	-
15	4158189		Screw (2)		Appelez-nous	-
16	4358052		Fan Motor		Appelez-nous	-
17	4358053		Fan Cover Front		Appelez-nous	-
19	4158071		Screw		Appelez-nous	-
20	4358055		Push Nut				$ 4.83
21	4358054		Blade, Fan		Appelez-nous	-
22	4158187		Screw (2)		Appelez-nous	-
23	4392027		Micro Switch (secondary)   (Replaces: 4158769)				$ 138.41
24	4358063		Screw		Appelez-nous	-
25	4392027		Micro Switch (monitor)   (Replaces: 4358004)				$ 138.41
26	4392027		Micro Switch (light)   (Replaces: 4158952)				$ 138.41
27	4158390		Lever, Switch		Appelez-nous	-
28	4358176		Latch Board Lower		Appelez-nous	-
29	4392027		Micro Switch (primary)   (Replaces: 4158948)				$ 138.41
30	4358175		Latch Board Upper		Appelez-nous	-
31	4358051		Special Screw (2)		Appelez-nous	-
34	4358031		Cover, Air		Appelez-nous	-
36	4358059		Magnatron		Appelez-nous	-
37	4358060		Bracket, Thermostat		Appelez-nous	-
38	4158539		Thermostat		Appelez-nous	-
39	4158186		Screw (2)		Appelez-nous	-
41	4358061		Cable Assy.		Appelez-nous	-
43	4358058		Transformer		Appelez-nous	-
44	WP3400094		Screw (2)   (Replaces: 4158747)				$ 7.14
47	4158405		Lead Wire		Appelez-nous	-
