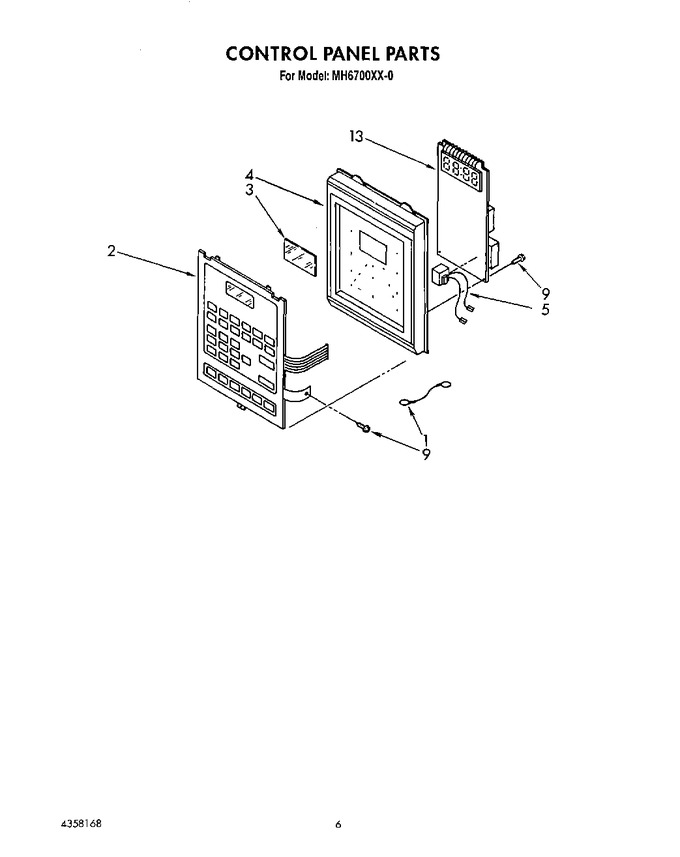

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4358179 | Wire, Ground |
|
- | |||||
| 2 | 4358071 | Switch, Membrane |
|
- | |||||
| 3 | 4158408 | Digitron Window |
|
- | |||||
| 4 | 4358070 | Control Panel |
|
- | |||||
| 5 | 4358073 | Transformer, Power |
|
- | |||||
| 9 | 4158071 | Screw |
|
- | |||||
| 13 | 4358182 | Microcomputer |
|
- |
