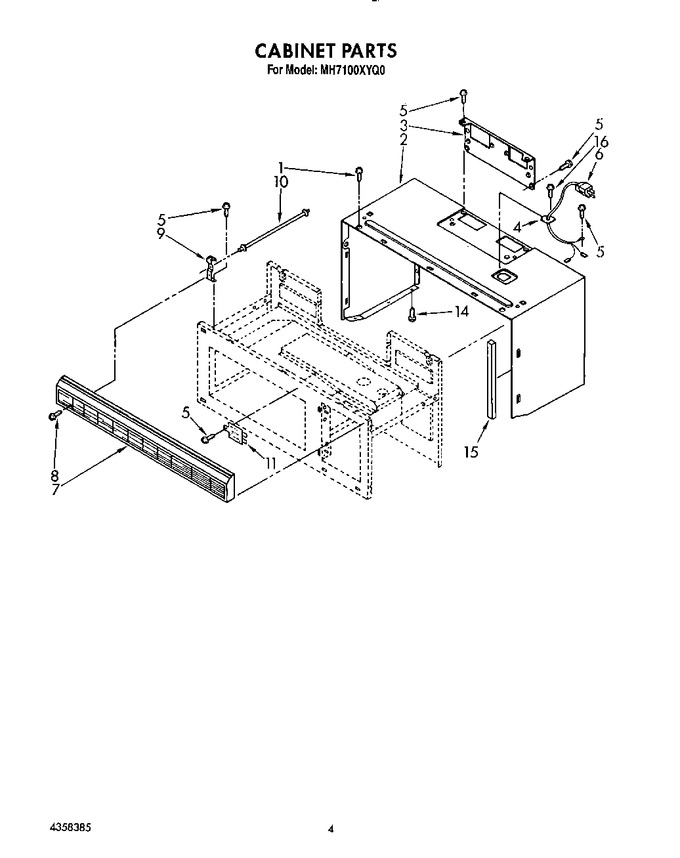

04 - Cabinet


05 - Door, Wiring Harness, Lit/optional


06 - Control Panel


07 - Cavity And Stirrer


08 - Ventilation


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4358192		Screw (2)		Appelez-nous	-
2	4358129		Outer Case (white)		Appelez-nous	-
2	4358016		Outer Case (black)		Appelez-nous	-
3	4358017		Vent Fan Mounting Bracket		Appelez-nous	-
4	4158092		Strain Relief		Appelez-nous	-
5	4358381		Screw (6)		Appelez-nous	-
6	4358172		Power Cord Assy.		Appelez-nous	-
7	4358019		Vent Grille (black)		Appelez-nous	-
7	4358130		Vent Grille (white)		Appelez-nous	-
8	4358382		Screw (3) (black)		Appelez-nous	-
8	4158988		Screw (3) (white)		Appelez-nous	-
9	4158426		Front Bracket		Appelez-nous	-
10	4158427		Mounting Rod		Appelez-nous	-
11	4358020		Sealed Plate-r.h.		Appelez-nous	-
14	4158308		Screw		Appelez-nous	-
15	4358021		Seal		Appelez-nous	-
16	4358192		Screw		Appelez-nous	-
