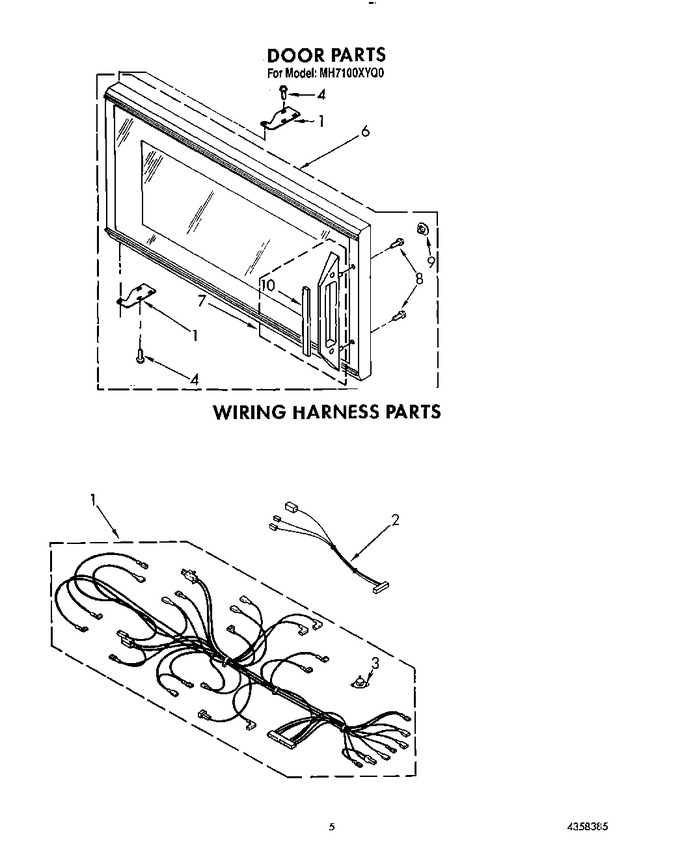

05 - Door, Wiring Harness, Lit/optional
06 - Control Panel
07 - Cavity And Stirrer
08 - Ventilation
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4358066 | Hinge Plate |
|
- | |||||
| 1 | 4358174 | Main Wiring Harness |
|
- | |||||
| 2 | 4358057 | Harness |
|
- | |||||
| 3 | 4158485 | Thermostat |
|
- | |||||
| 3 | WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | ||||
| 3 | 4158491 | Installation Hardware |
|
- | |||||
| 3 | 4158439 | White Filler Kit |
|
- | |||||
| 3 | 4158311 | Black Filler Kit |
|
- | |||||
| 3 | 4158440 | Smoke Deflector Kit |
|
- | |||||
| 4 | 4358067 | Tapping Screw |
|
- | |||||
| 6 | 4358244 | Complete Door (white Model) |
|
- | |||||
| 6 | 4358185 | Door, Complete (black) |
|
- | |||||
| 7 | 4358134 | Handle (white) |
|
- | |||||
| 7 | 4358068 | Handle (black) |
|
- | |||||
| 8 | 4358064 | Screw, Tapping (2) |
|
- | |||||
| 9 | 4158556 | Plug, Button (white) |
|
- | |||||
| 9 | 4158487 | Plug, Button (black) |
|
- | |||||
| 10 | 4358069 | Insert, Handle (black) |
|
- | |||||
| 10 | 4358135 | Insert, Handle (white) |
|
- | |||||
| LIT4158680 | Auto Set Chart |
|
- | ||||||
| LIT4358385 | List, Repair Parts |
|
- | ||||||
| LIT4158272 | Cookbook |
|
- | ||||||
| LIT4358303 | Tech Sheet |
|
- | ||||||
| LIT4358149 | Instructions, Installation |
|
- | ||||||
| LIT4358291 | Guide, Use & Care |
|
- | ||||||
| LIT4358002 | Auto Set Guide |
|
- | ||||||
| LIT4158705 | Defrost Guide |
|
- |
