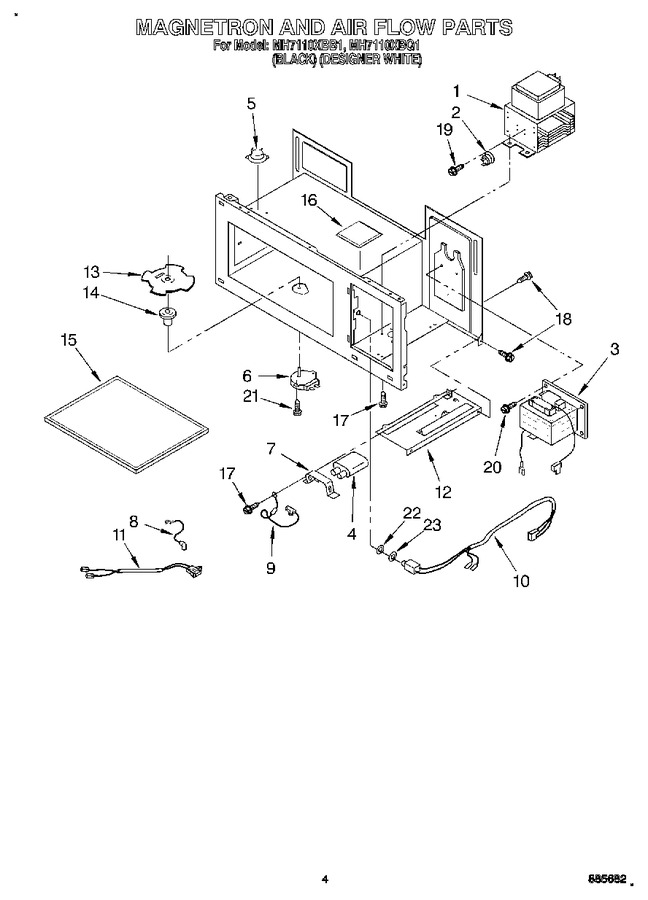

04 - Magnetron And Air Flow
05 - Interior, Lit/optional
06 - Latch Board
07 - Ventilation
08 - Installation
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4358059 | Magnatron |
|
- | |||||
| 2 | 4358772 | Thermostat |
|
- | |||||
| 3 | 4358774 | Transformer |
|
- | |||||
| 4 | 4158947 | Capacitor |
|
- | |||||
| 5 | W10864742 | Thermostat (Replaces: 4358775) |
|
$ 76.01 | |||||
| 6 | 4358777 | Motor |
|
- | |||||
| 7 | 4358778 | Bracket |
|
- | |||||
| 8 | 4158827 | H.v. Cable |
|
- | |||||
| 9 | 4158923 | H.v. Diode-cable |
|
- | |||||
| 10 | 4358823 | Lead Wire |
|
- | |||||
| 11 | 4358780 | Lead Wire |
|
- | |||||
| 12 | 4358781 | Plate, Bottom |
|
- | |||||
| 13 | 4358782 | Stirrer Fan Disk |
|
- | |||||
| 14 | 4358783 | Holder Disk |
|
- | |||||
| 15 | 4158731 | Ceramic Plate |
|
- | |||||
| 16 | 4358156 | Temp Hole Cap |
|
- | |||||
| 17 | 4344826 | Screw (Replaces: 4358489) |
|
$ 14.31 | |||||
| 18 | 4358192 | Screw |
|
- | |||||
| 19 | 4358376 | Screw |
|
- | |||||
| 20 | WP3400094 | Screw (Replaces: 4158747) |
|
$ 7.14 | |||||
| 21 | 4358188 | Screw |
|
- | |||||
| 22 | 4158212 | Nut |
|
- | |||||
| 23 | 4158213 | Washer |
|
- |
