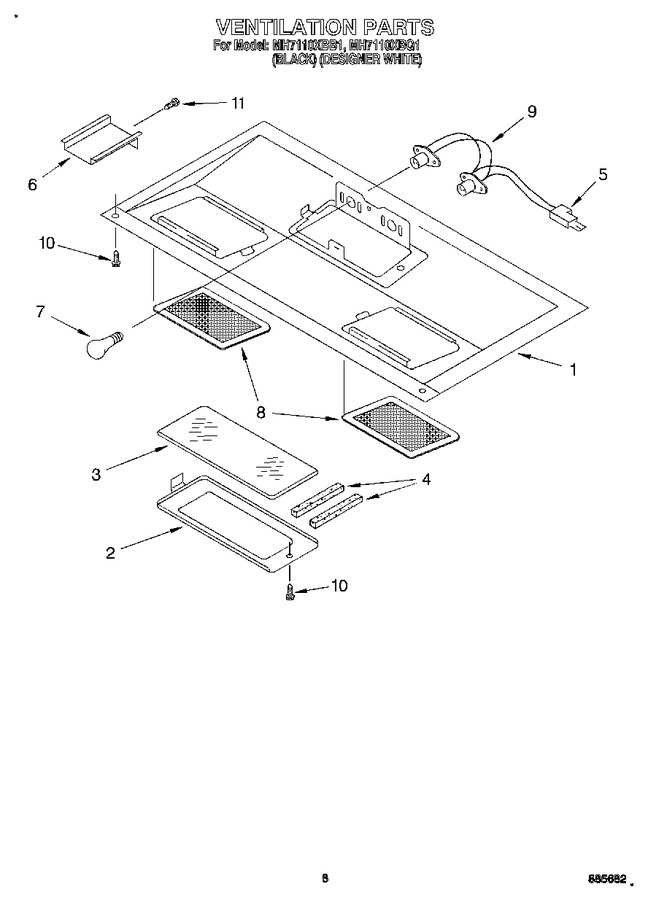

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4358544 | Base Plate (white Model) |
|
- | |||||
| 1 | 4358763 | Base Plate (black Model) |
|
- | |||||
| 2 | 4358533 | Cover Cooktop Glass (white Model) |
|
- | |||||
| 2 | 4358765 | Cover Cooktop Glass (black Model) |
|
- | |||||
| 3 | 4358571 | Glass, Cooktop Lamp |
|
- | |||||
| 4 | 4358767 | Cushion, Glass |
|
- | |||||
| 5 | 4358768 | Lead Wire Assy. |
|
- | |||||
| 6 | 4358769 | Cover, Wire |
|
- | |||||
| 7 | 8206232A | Oven Lamp (Replaces: 4158344) |
|
Immediately | $ 6.61 | ||||
| 8 | 4358853 | Air Filter |
|
Immediately | $ 16.99 | ||||
| 9 | 4358790 | Lamp Holder |
|
- | |||||
| 10 | 4358015 | Screw |
|
- | |||||
| 11 | 4358190 | Screw |
|
- |
