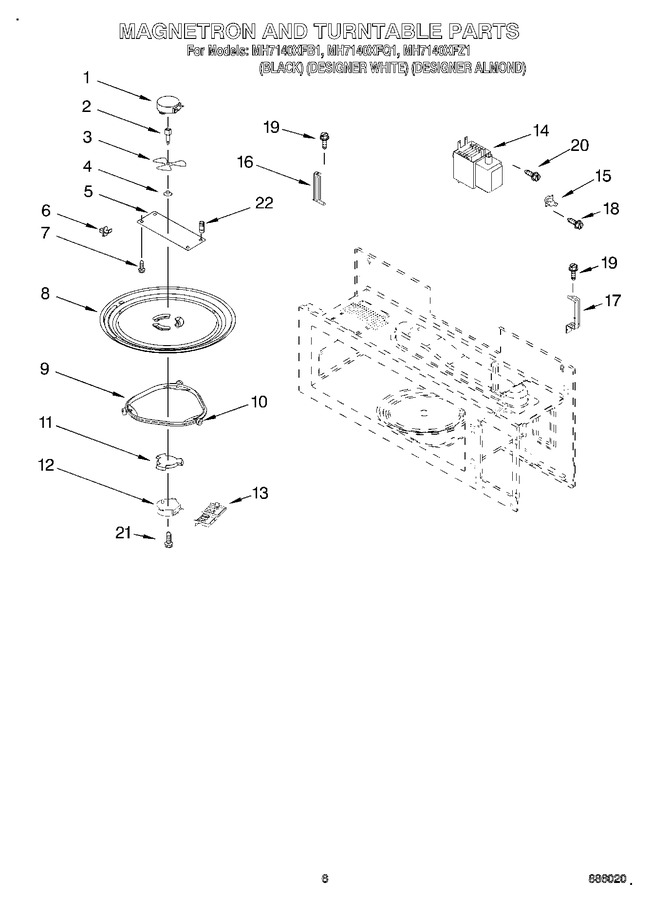

05 - Magnetron And Turntable


06 - Cabinet And Installation


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4393746		Motor, Stirrer		Appelez-nous	-
2	4393794		Shaft, Stirrer		Appelez-nous	-
3	4393748		Stirrer		Appelez-nous	-
4	4393749		Guide, Stirrer		Appelez-nous	-
5	4393750		Cover, Inlet		Appelez-nous	-
6	W10315274		Hook, Rack (4)   (Replaces: 4393849)				$ 39.68
7	4393291		Nail, Plastic		Appelez-nous	-
8	4393799		Turntable				$ 82.90
9	W11252182		Ring, Turntable   (Replaces: 4393752)			Immediately	$ 35.60
10	4393861		Wheel, Plastic				$ 5.59
11	W10435116		Driver, Turntable   (Replaces: 4393754)				$ 29.54
12	W10642989		Motor, Turntable   (Replaces: 4393755)			Immediately	$ 171.39
13	4393756		Cover, Terminal		Appelez-nous	-
14	W10245183		Magnetron   (Replaces: 4393604)			Immediately	$ 220.91
15	4393603		Thermostat		Appelez-nous	-
16	4393797		Holder, Connector (l)		Appelez-nous	-
17	4393686		Holder, Connector (r)		Appelez-nous	-
18	4393838		Screw		Appelez-nous	-
19	4393828		Screw		Appelez-nous	-
20	WP8181660		Screw   (Replaces: 4393831)				$ 6.26
21	4393832		Screw				$ 11.55
22	4393290		Bushing, Nail		Appelez-nous	-
