SELECT A DIAGRAM
01 - Control Panel, Literature
02 - Door
03 - Interior And Ventilation
04 - Air Flow
05 - Magnetron And Turntable

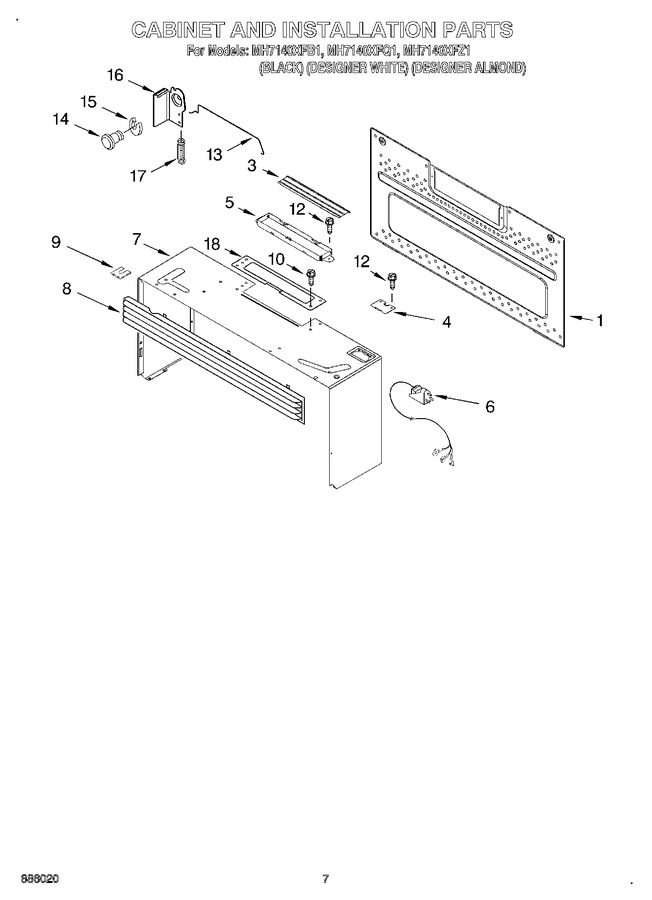

06 - Cabinet And Installation
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8206174 | Plate, Mounting (Replaces: 8169406) |
|
$ 30.99 | |||||
| 3 | W10843943 | Damper, Exhaust (Replaces: 4393713) |
|
Immediately | $ 65.74 | ||||
| 4 | 4393714 | Lid, Power Cord |
|
- | |||||
| 5 | W10843943 | Exhaust, Damper (Replaces: 4393715) |
|
Immediately | $ 65.74 | ||||
| 6 | 4393793 | Cord, Power |
|
- | |||||
| 7 | 8169661 | Case, Outer (black) |
|
- | |||||
| 7 | 8169660 | Case, Outer (white) |
|
- | |||||
| 7 | 8169662 | Case, Outer (almond) |
|
- | |||||
| 8 | 4393779 | Grille, Vent (almond) |
|
- | |||||
| 8 | 8183851 | Grille, Vent (black) (Replaces: 4393778) |
|
Immediately | $ 82.20 | ||||
| 8 | 8183948 | Grille, Vent (white) (Replaces: 4393773) |
|
$ 78.26 | |||||
| 9 | 8206334 | Grille, Holder (Replaces: 4393795) |
|
$ 6.47 | |||||
| 10 | WP4393834 | Screw (Replaces: 4393834) |
|
$ 6.47 | |||||
| 12 | 4393828 | Screw |
|
- | |||||
| 13 | 8169318 | Rod |
|
- | |||||
| 14 | 8169319 | Latch, Pivot |
|
- | |||||
| 15 | 8169320 | E-ring |
|
- | |||||
| 16 | 8169321 | Catch |
|
- | |||||
| 17 | 8169374 | Spring |
|
- | |||||
| 18 | 4378403 | Filler Kit (almond) |
|
- | |||||
| 18 | 8169768 | Hardware, Installation |
|
- | |||||
| 18 | WP8169704 | Screw, Top Mountng (Replaces: 8169704) |
|
Immediately | $ 10.07 | ||||
| 18 | 8169298 | Upper Template |
|
- | |||||
| 18 | 8169487 | Wall Template |
|
- | |||||
| 18 | 4393826 | Rack |
|
- | |||||
| 18 | 4158311 | Filler Kit (black) |
|
- | |||||
| 18 | 4158439 | Filler Kit (white) |
|
- | |||||
| 18 | 8169697 | Plate, Damper |
|
- |
