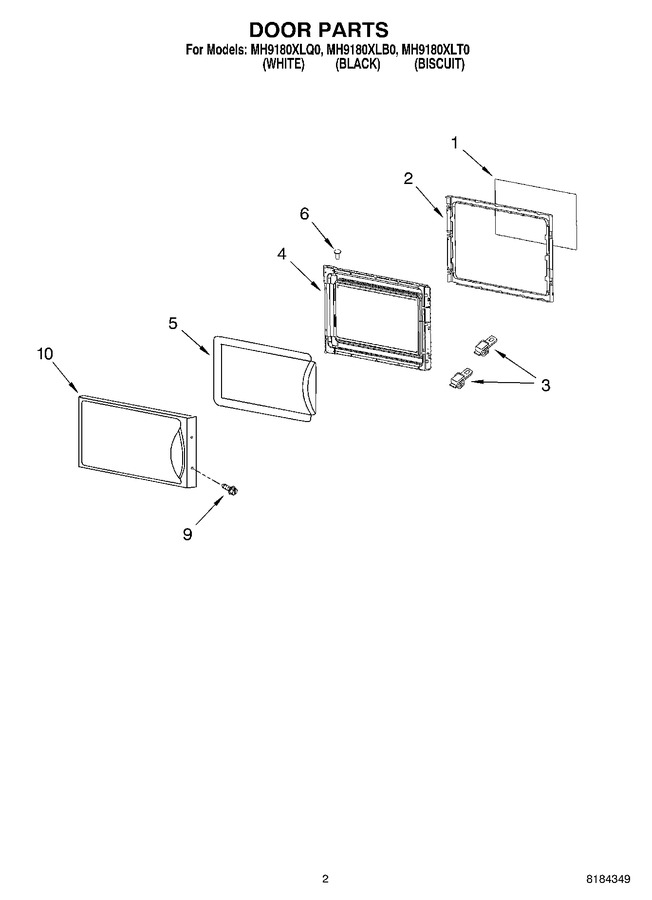

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	8184111		Frame, Inner		Appelez-nous	-
3	8184113		Latch, Door		Appelez-nous	-
4	8184242		Body Asy, Door Includes No.1 (black)		Appelez-nous	-
4	8184241		Body Asy, Door Includes No.1 (biscuit)		Appelez-nous	-
4	8184239		Body Asy, Door Includes No.1 (white)		Appelez-nous	-
6	8184134		Pivot, Door		Appelez-nous	-
9	8169479		Screw				$ 6.26
10	8184769		Frame Asy, Outer Includes No.5 (biscuit)		Appelez-nous	-
10	8184677		Frame Asy, Outer Includes No.5 (white)		Appelez-nous	-
10	8184679		Frame Asy, Outer Includes No.5 (black)		Appelez-nous	-
