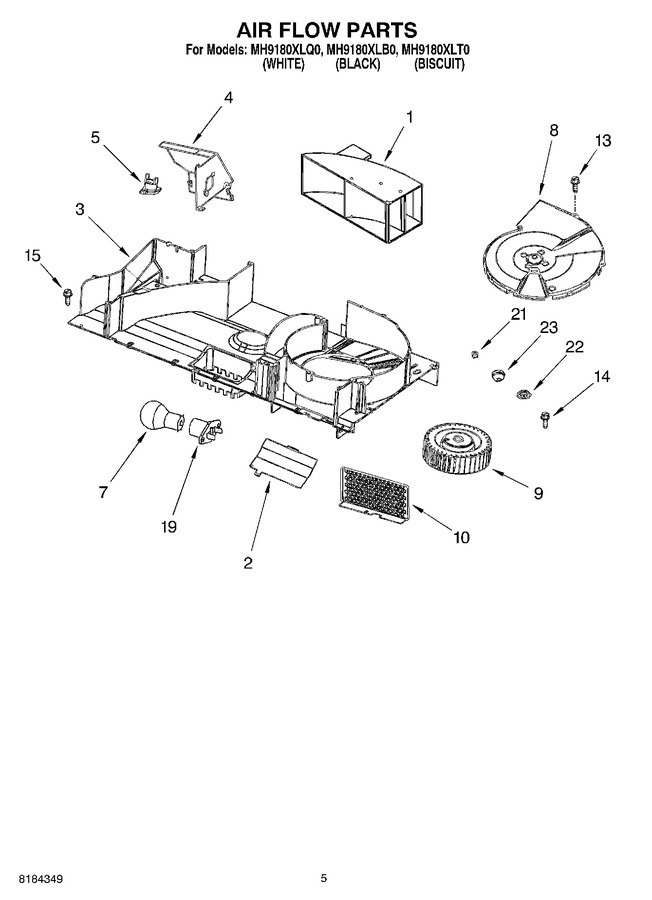

04 - Air Flow
05 - Magnetron And Turntable
06 - Cabinet And Installation
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8184667 | Deflector, Air |
|
- | |||||
| 2 | 8184191 | Cover, Lamp |
|
- | |||||
| 3 | 8184114 | Duct, Air |
|
- | |||||
| 4 | 8184136 | Bracket, Thermostat |
|
- | |||||
| 5 | 8183999 | Thermostat |
|
- | |||||
| 7 | 8206232A | Lamp (Replaces: 8183993) |
|
Immediately | $ 6.61 | ||||
| 8 | 8184133 | Cover, Motor |
|
- | |||||
| 9 | 8183992 | Motor, Fan-assy |
|
- | |||||
| 10 | 8184130 | Shield |
|
- | |||||
| 13 | WP4393834 | Screw (Replaces: 4393834) |
|
$ 6.47 | |||||
| 14 | 8184198 | Screw |
|
- | |||||
| 15 | 8169474 | Screw |
|
$ 8.51 | |||||
| 19 | 8169539 | Holder, Lamp |
|
$ 54.43 | |||||
| 21 | 8184129 | Spacer, Copper Pipe |
|
- | |||||
| 22 | 4393874 | Plate, Damper |
|
- | |||||
| 23 | 8169635 | Cushion, Mtr |
|
- |
